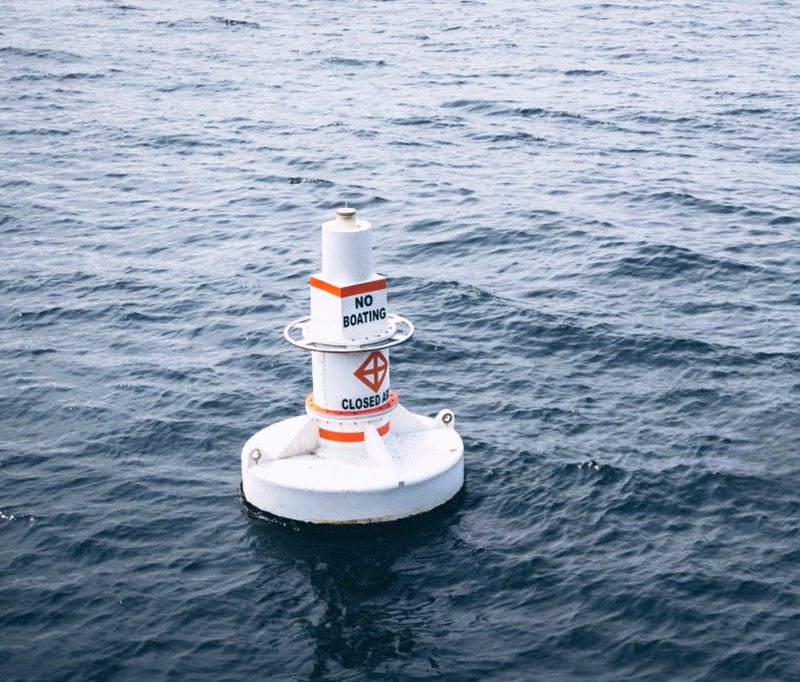

A pillar buoy is a navigation buoy designed with a tall, vertical structure and a wide, stable base. It is commonly used in maritime navigation to mark channels, hazards, and special areas. The pillar buoy is known for its robust design, which supports topmarks, lights, radar reflectors, and even AIS transponders.
Pillar Buoy Meaning in Maritime Navigation
The pillar buoy's meaning varies depending on its color, topmark, and light characteristics, as defined by the IALA (International Association of Marine Aids to Navigation and Lighthouse Authorities) buoyage systems.
There are two IALA regions:
1) IALA Region A (Europe, Asia, Africa, Australia)
2) IALA Region B (North and South America, Japan, the Philippines)
Here’s what a pillar buoy may indicate:
Understanding the pillar buoy's meaning helps mariners stay safe and avoid navigational hazards.

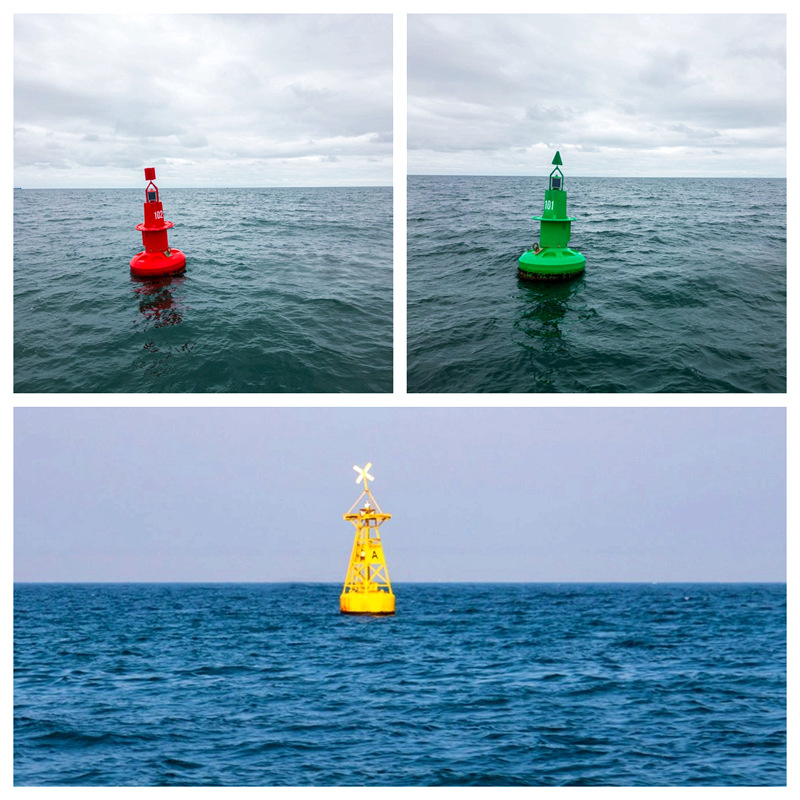

Type of Buoy | Color & Topmark | Meaning |
Port Hand Buoy | Red, cylindrical top | Keep it on your port (left) side when entering a harbor |
Starboard Hand Buoy | Green, conical top | Keep it on your starboard (right) side when entering a harbor |

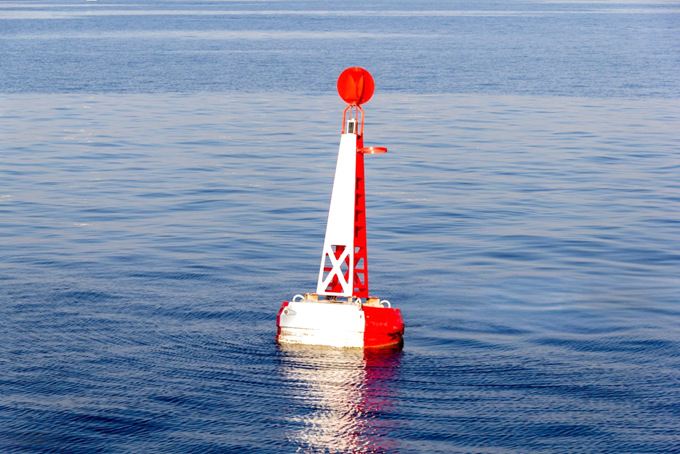

Safe Water Buoy | Red and white vertical stripes, red sphere top | Indicates safe water all around |
Isolated Danger Buoy | Black and red bands, two black balls | Warns of danger surrounded by navigable water |
Special Mark Buoy | Yellow, X-shaped top | Indicates special areas like pipelines or anchorage zones |
Pillar Buoy Symbol on Nautical Charts
On marine charts, the pillar buoy symbol is shown as a vertical line with a topmark, and sometimes light information. These symbols help ship captains and navigators recognize the buoy's type and purpose before visual contact.
Example:
▲ ← Topmark (varies by type)
│ ← Pillar body
• ← Base ( in water )
Light characteristics may be noted nearby, e.g., "Fl(2)R.6s" for a red flashing light in a 6-second cycle.
Pillar Buoy Construction and Materials
Modern pillar buoys are constructed using:
- Steel for strength and durability
- Polyethylene (PE) for corrosion resistance and lower maintenance
- Internal foam filling for positive buoyancy

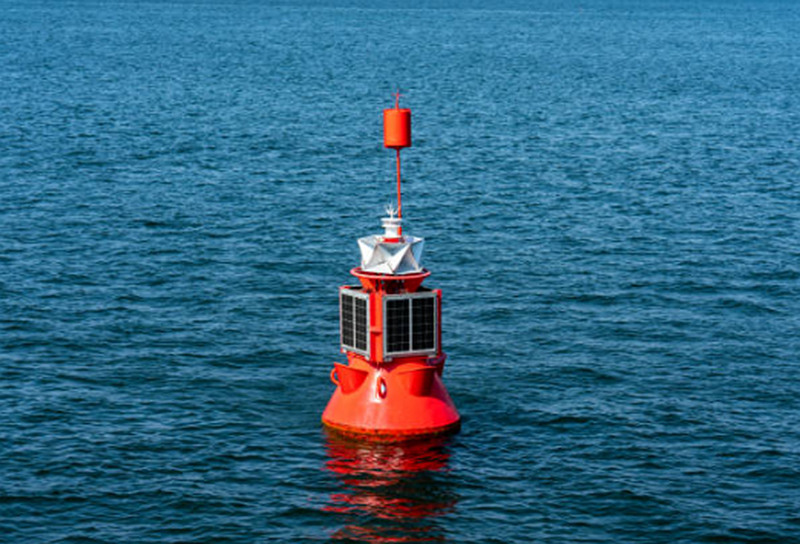

- Solar-powered LED lights and optional GPS/AIS units

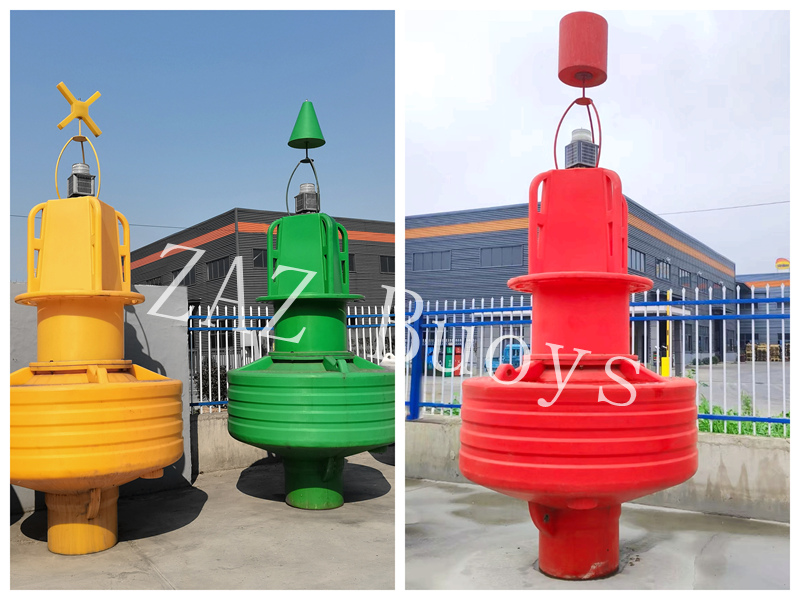

These are our PE buoys. They are engineered to withstand harsh marine environments and are often used in ports, offshore oil platforms, coastal zones, and dredging projects. Our pillar buoys are suitable for many places, like port and harbor navigation, offshore wind farm marking, and coastal dredging safety and so on.
Why the Pillar Buoy Symbol Matters
Recognizing the pillar buoy symbol on charts and understanding its meaning ensures safe passage through busy or dangerous waters. For engineers and marine contractors, choosing the right pillar buoy type is critical in project planning and implementation.
If you're involved in coastal engineering, port management, or marine navigation equipment, using IALA-compliant pillar buoys is essential. Understanding the pillar buoy's meaning and being able to identify the pillar buoy symbol on charts will ensure safety and compliance.
Need Help Choosing the Right Pillar Buoy?
At ZAZ Buoys, we specialize in high-performance pillar buoys designed for international standards. Whether you need red/green navigation buoys, special marker buoys, or solar-powered systems, we’re all ready to assist. Contact us today to get expert support and technical specifications.
Meanwhile, we know choosing the right buoy shape can be confusing sometimes. That’s why we’ve prepared another article (several commonly used buoy shapes for you to choose) to walk you through the common types and how to pick the one that works best for your project. Hope it helps!
