Navigation buoys are critical markers in maritime navigation, guiding vessels to ensure safe and efficient passage through waters. These buoys are part of the broader Aids to Navigation (AtoN) system and follow international rules and standards to ensure consistency and safety.
The rules governing navigation buoys are typically set by international organizations such as the International Maritime Organization (IMO), and national authorities often follow these standards or have additional local regulations.
Here is an overview of the key rules and standards regarding navigation buoys:
1. International Association of Lighthouse Authorities (IALA) System
The IALA (International Association of Lighthouse Authorities) established two main buoyage systems, both systems share the same overall purpose but differ in the color scheme and patterns for navigation marks:
IALA Region A: This system is used by most countries in Europe, Africa, Asia, and parts of the Middle East. It is also used in many countries in the Southern Hemisphere.
IALA Region B: This system is used by countries in North America, Central America, and parts of the Pacific.
Buoys are typically categorized by their function, and each type follows specific color and marking codes.

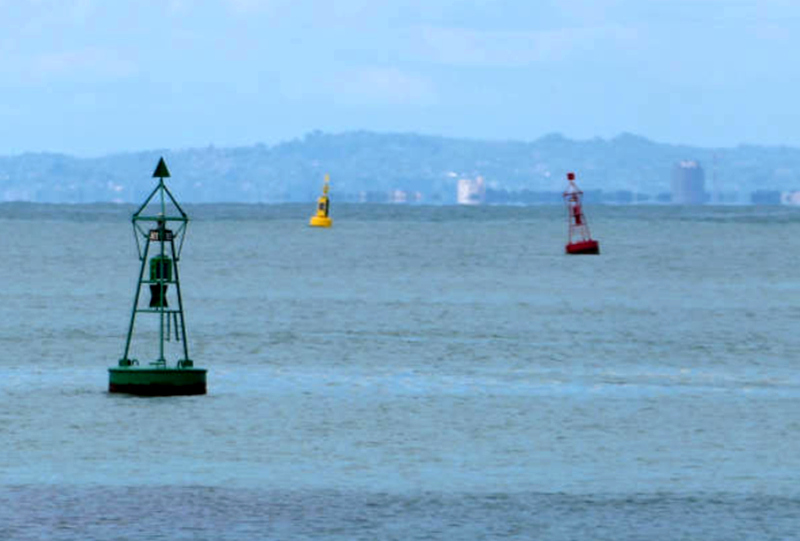

Lateral Marks：
These buoys indicate the boundaries of navigable channels or waterways.
Red Buoys: In IALA Region B, a red buoy indicates the port (left) side of the channel when entering from the sea, and in IALA Region A, it indicates the starboard (right) side.
Green Buoys: These indicate the starboard (right) side of the channel in IALA Region B and the port (left) side in Region A.
Top marks: Lateral buoys typically feature a specific top mark to help mariners identify the type of buoy. For example, a green buoy might have a single cone-shaped top mark, while a red buoy may feature a cylindrical or spherical top mark.

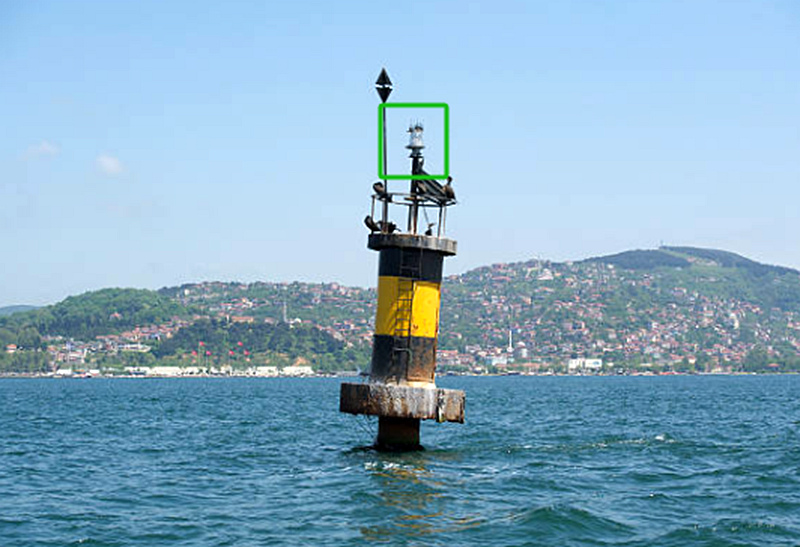

Cardinal Marks：
These buoys indicate the position of hazards or channels and are based on the four cardinal directions: North, East, South, and West.
North Cardinal Buoy: Black and yellow, with two black cones pointing upwards.
East Cardinal Buoy: Black and yellow with one cone pointing upwards and one pointing down.
South Cardinal Buoy: Black and yellow with two black cones pointing downwards.
West Cardinal Buoy: Black and yellow with one cone pointing upwards and one pointing downwards.

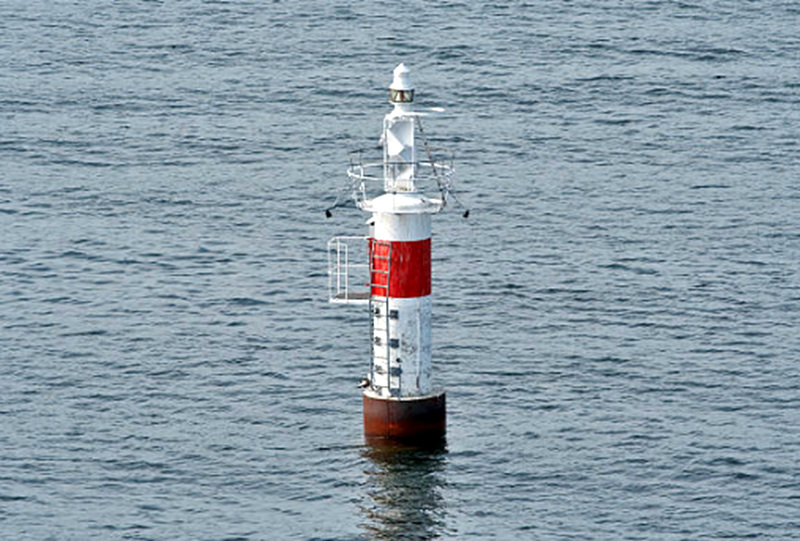

Safe Water Marks (or Fairway Buoys)：
These buoys mark the centerline of a navigable channel and are often used at the entrance to harbors.
Typically, these buoys are marked with red and white vertical stripes and may feature a spherical topmark.
Special Marks：
These buoys indicate special areas or hazards like military zones, underwater cables, or other non-lateral navigational information.
Yellow Buoys: Often used to mark special areas, such as mooring areas, exclusion zones, or pipelines.
Emergency and Mooring Buoys:
These provide temporary navigation assistance or anchor points and may not follow standard marking rules.
3. Color Coding
Buoy colors are standardized to make them easily identifiable from a distance:
Red: Typically indicates the port side or left side of a channel when approaching from the sea (Region B) or the starboard side in Region A.
Green: Typically indicates the starboard side or right side of a channel when approaching from the sea (Region B) or the port side in Region A.
Yellow: Used for special marks or markers that do not indicate a lateral position (e.g., special purpose areas or hazards).
Black and Yellow: Used for cardinal buoys to indicate the relative position of hazards or safe waters.
4. Light and Sound Signals
Many buoys are equipped with lights and/or sound signals to enhance visibility, especially at night or in poor weather conditions.
Flashing Lights: Buoys may have periodic flashing lights with a specific rhythm that can be used to identify the buoy and its function. For example, a buoy may have a 2-second flash every 10 seconds to indicate its position.
Sound Signals (Fog Signals): Some buoys are equipped with sound-producing devices (horns or bells) to help ships locate the buoy in low-visibility conditions, such as fog. The sound signal may have a unique pattern or interval, which is often codified.
5. Marking System for the IALA Regions
Region A (Europe, Africa, Asia):
Red buoys are placed on the port side of a channel and have even numbers.
Green buoys are placed on the starboard side of a channel and have odd numbers.
Region B (Americas, Japan, and some parts of the Pacific):
Green buoys are placed on the starboard side of a channel and have even numbers.
Red buoys are placed on the port side of a channel and have odd numbers.
6. Regulations and Compliance
IMO Guidelines: The International Maritime Organization (IMO) provides guidelines on the operation, placement, and maintenance of navigation buoys. These guidelines are designed to ensure that buoys are easily identifiable and follow internationally recognized standards.
National Regulations: In addition to international standards, individual countries may have their regulations for navigation buoys. These rules can cover aspects like the construction, positioning, and maintenance of buoys within a nation's waters.
7. Maintenance and Inspection
Navigation buoys are subject to regular maintenance and inspection to ensure they remain effective and safe. This includes checks on buoy condition, light functions, and sound signals.
Buoys that are damaged, out of position, or missing may be replaced, repaired, or relocated, and navigational charts are updated to reflect these changes.
Conclusion
Navigation buoys are essential tools for ensuring safe navigation in maritime environments. Following the IALA buoyage systems and international maritime rules ensures consistency, safety, and ease of navigation. Mariners must understand the various types of buoys, their color codes, light and sound signals, and other identifying features to navigate safely, particularly in busy or dangerous waters.
