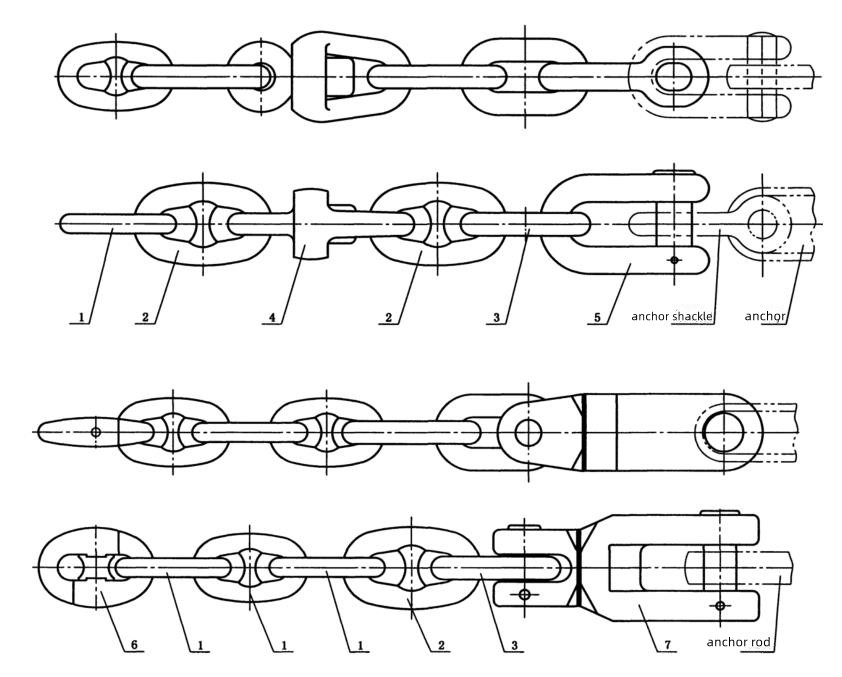

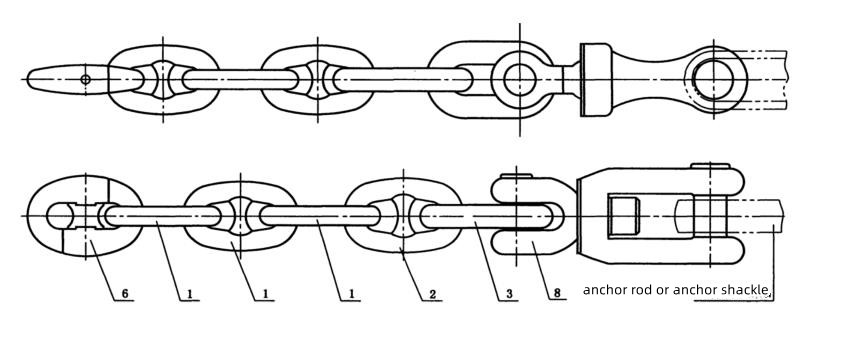

The swivel shackle is divided into the following two types according to the joining type with the anchor rod and the anchor shackle:

a, Type I swivel shackle - swivel shackle directly connected to the anchor rod;

b, Type II swivel shackle - directly connected to the anchor shackle, can also be connected to the anchor rod of the swivel shackle.

2) main components.

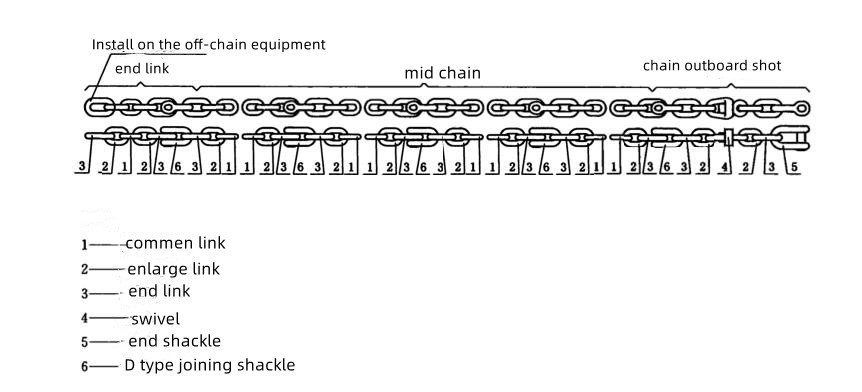

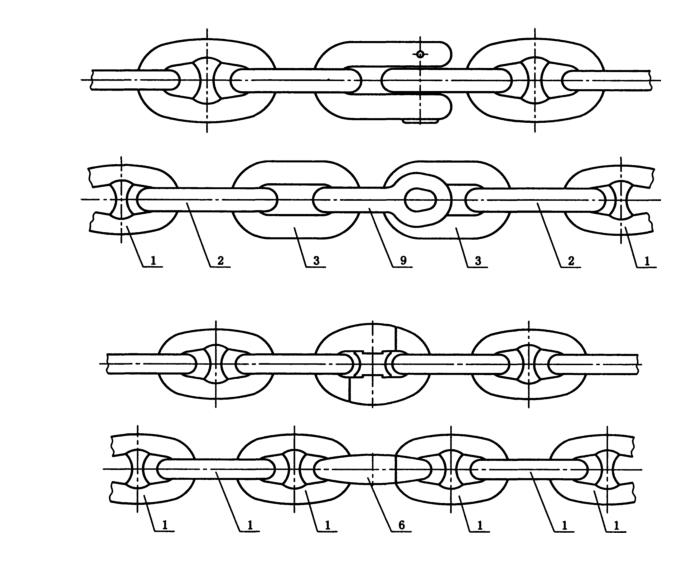

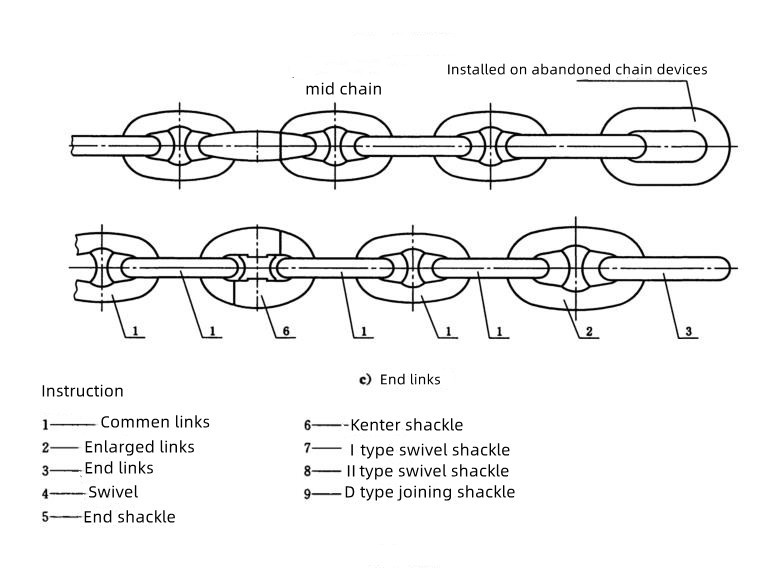

a, Stud anchor chain. It consists of chain outboard shots, end links and some  middle links which are connected by joining shackle, please check the pictures below:

b, studless anchor chain.

studless anchor chain consists of chain outboard shot、end link and some middle links, and the D type shackle is used to connect with links. please check the pictures below:

3) Type and Size.

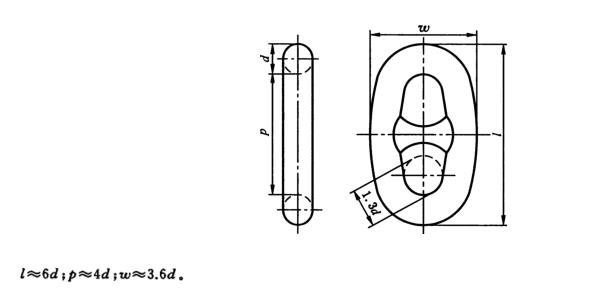

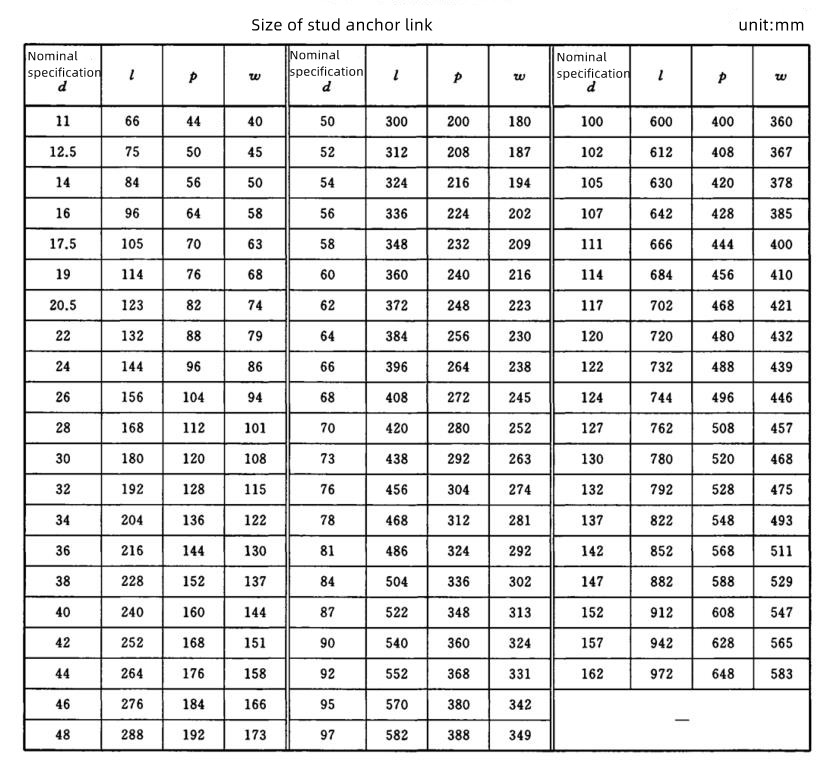

a, the type and size of stud anchor chain.

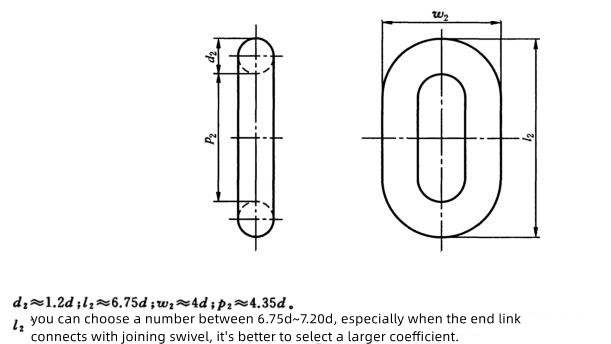

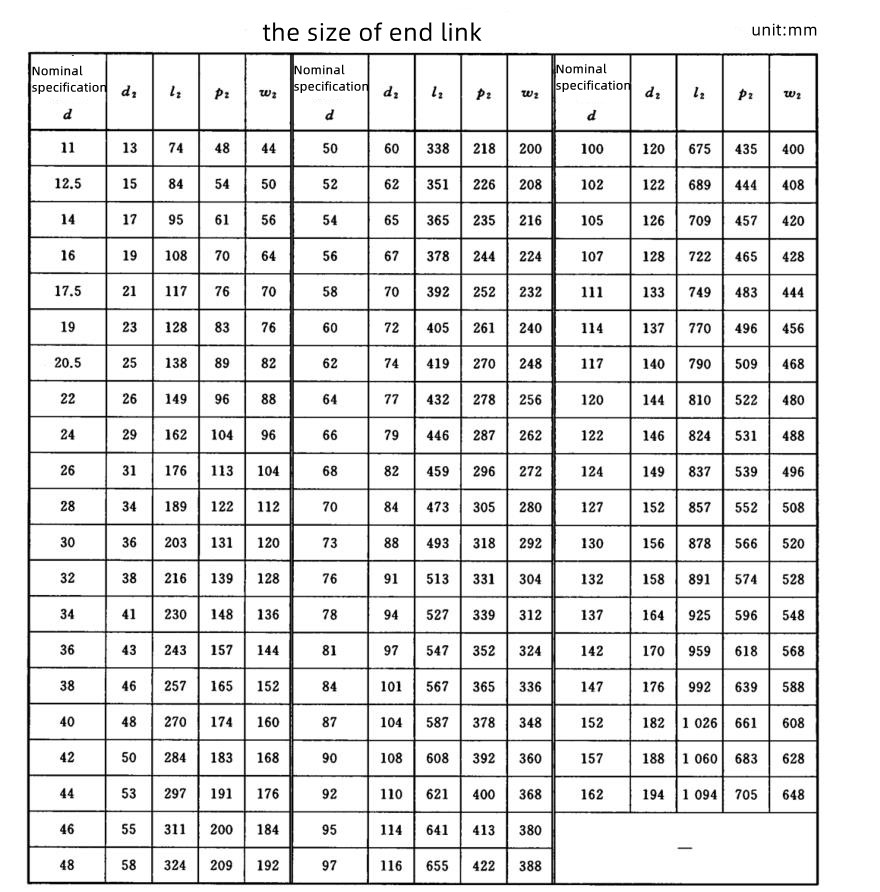

b, the type and size of end link.

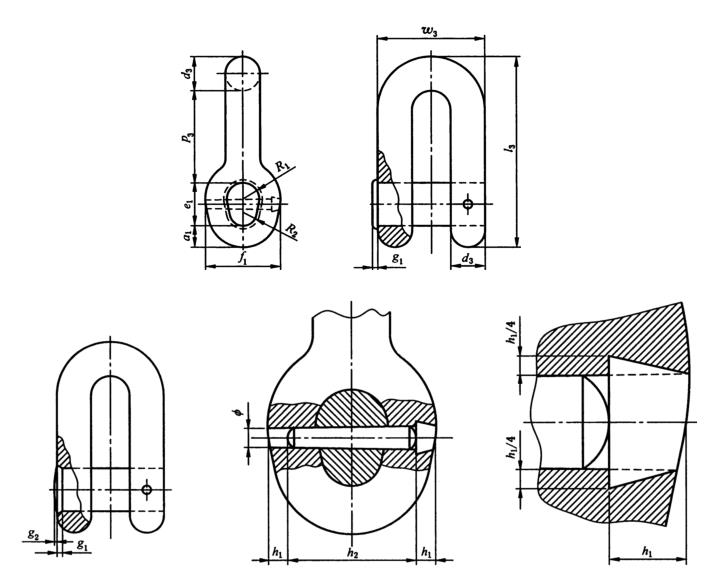

c, the type and size of D joining shackle.

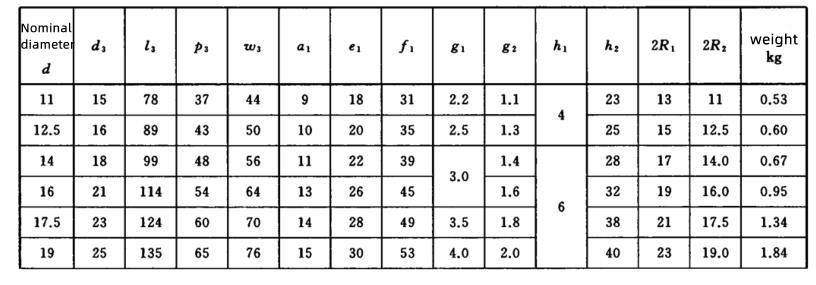

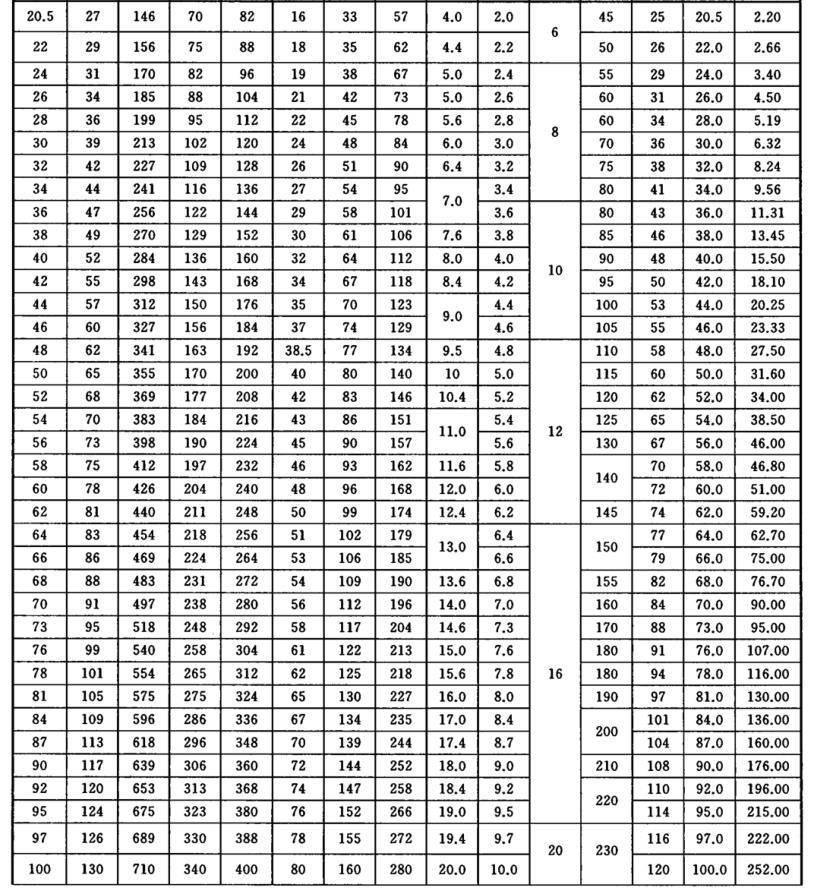

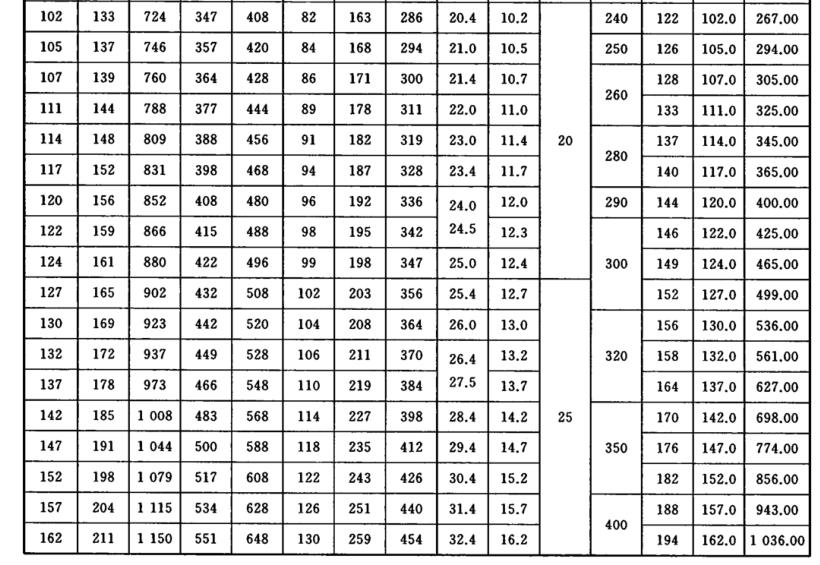

                                                Size of D joining shackle                 unit:mm
