With diameters ranging from 0.6m to 3.6m, our steel buoys can be used in inland rivers ,lakes and ocean.All steel plates are choosing from marine steel plate with hull thickness from 5 mm to 12mm.
The buoy consists of a float, a tailpipe, a ballast and a light stand.
The floating body and tailpipe parts are formed with structural steel from CCSB hulls and welded. The ballast is easy to manufacture with HT200 and has good corrosion resistance. The lampstand part is composed of hot-dip galvanized steel pipe welding, and the corrosion resistance of the substrate is better.
The float is made of welding the upper and lower heads and cylinders, bulkheads, etc., and is divided into four sealing cabins, two of which are damaged and enter the water, and the buoy is still floating and will not sink into the water. Three lifting lugs are provided for hoisting and connecting the saddle chain on the upper and lower rings of the buoy, and one additional chain link is provided for single-chain connection. Set up two anode zinc blocks to protect the buoy.

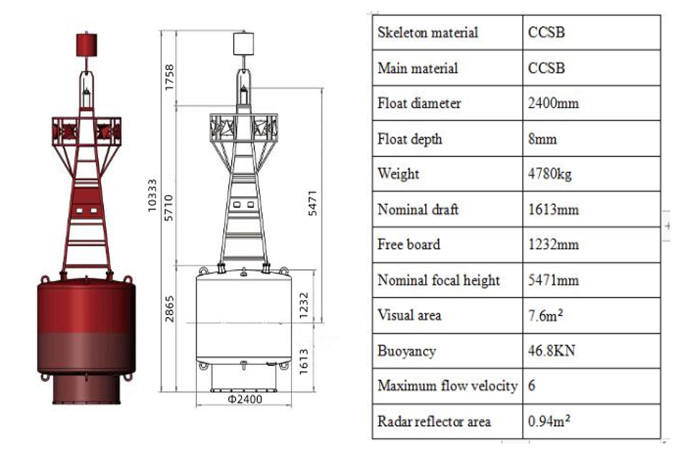

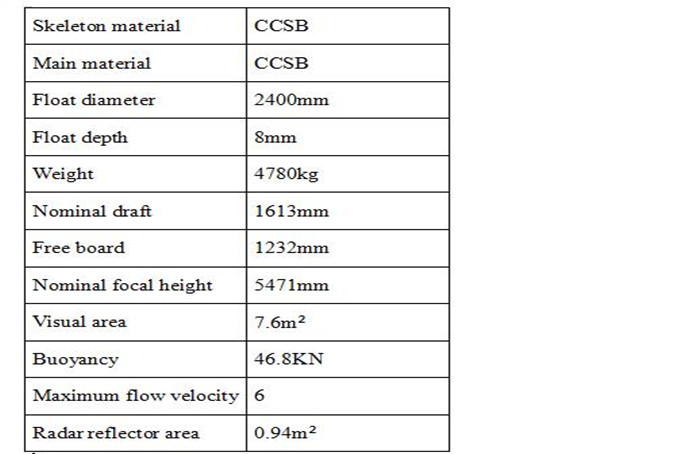

Specification.
Skeleton material | CCSB |
Main material | CCSB |
Float diameter | 2400mm |
Float depth | 8mm |
Weight | 4780kg |
Nominal draft | 1613mm |
Free board | 1232mm |
Nominal focal height | 5471mm |
Visual area | 7.6m² |
Buoyancy | 46.8KN |
Maximum flow velocity | 6 |
Radar reflector area | 0.94m² |
