Steel buoy in deep water

Steel buoy in shallow water

Our ZAZ steel buoys are of steel construction and with excellent stability characteristics.  All ZAZ Marine Steel buoys are made in accordance with IALA guidelines.

All navigation buoys are successfully being used to demarcate a variety of marine and coastal areas, such as waterways, marinas, rivers, port entrances, ocean and offshore locations.

They are characterized by their high shock resistance and stability. Metallic parts of the buoys (superstructure and tail) are made from hot-dip galvanized steel, and designed to provide a long service life under harsh marine conditions. They can be customized under client’s request, as well as to be made from stainless steel or marine aluminium.

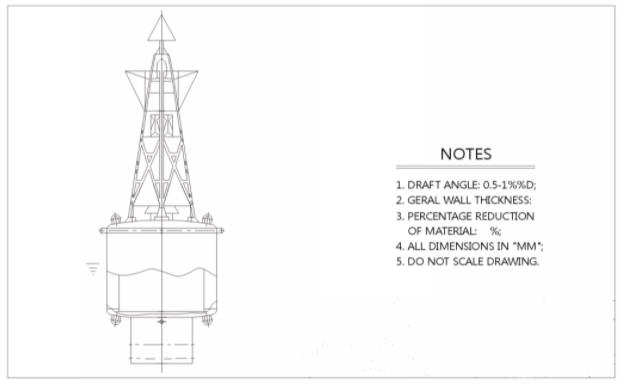

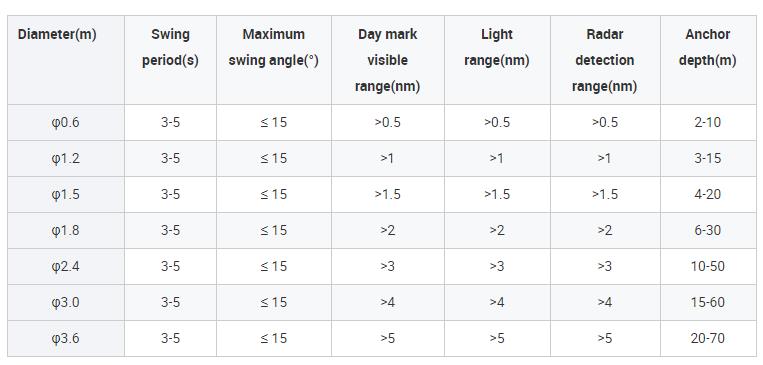

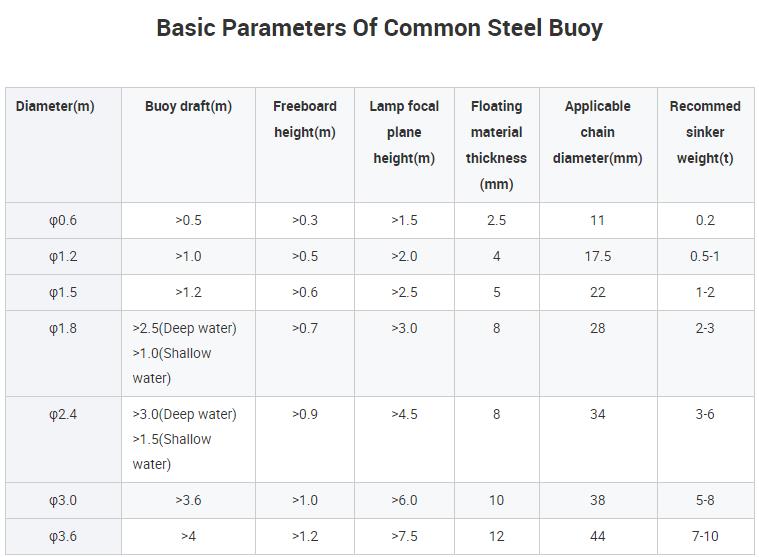

Some basic information about the Diameter 1.5m marine buoy steel buoy :

Brand: ZAZ

Diameter: 1500mm

Thickness of plate: 5mm

Navigation draft:>1200mm

Total weight: 700kg

Wind resistance: >45m/s

Temperature range: -40~50℃

Anchor Chain diameter: ¢22mm

Sinker weight: 1000kg~2000kg

Focal height: >2500mm

The height of freeboard: >600mm

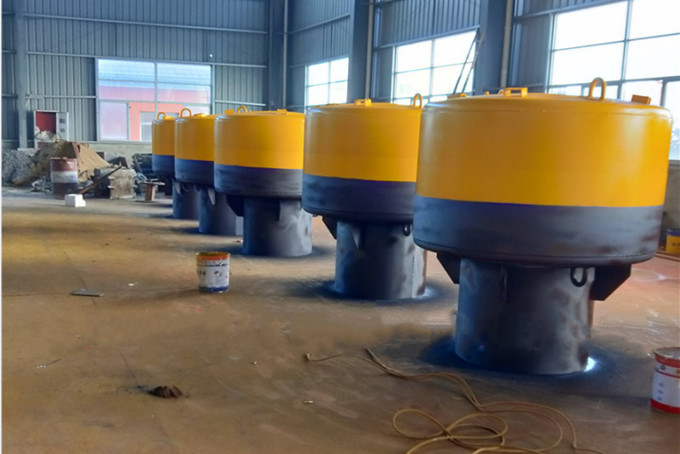

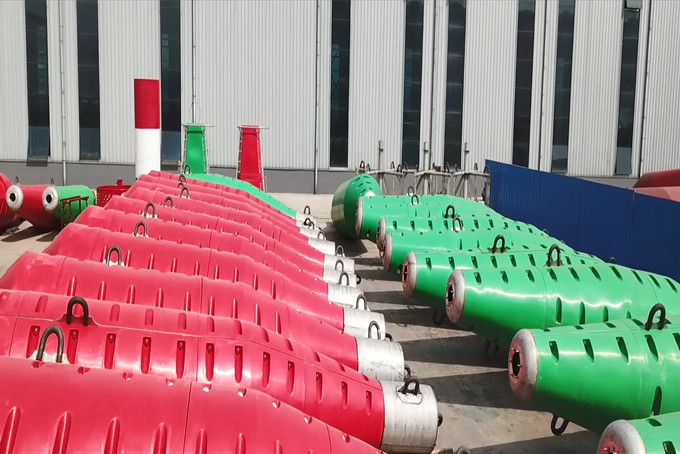

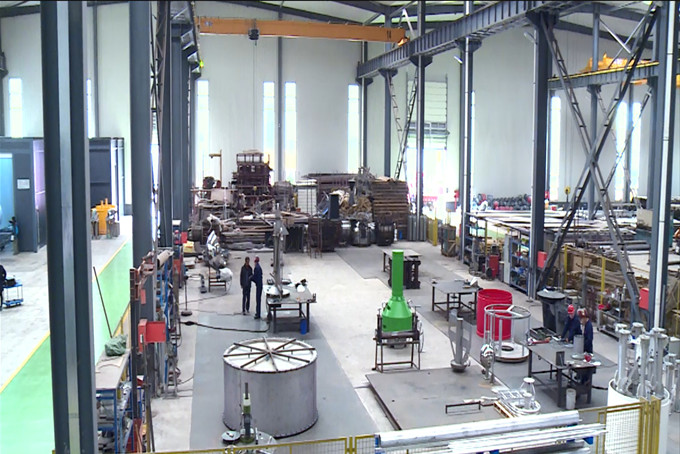

 Pictures of our ZAZ workshop:

About Welding.

* We use CO2 welding, manual welding,Submerged arc auto welding and automatic welding.

*All weld surfaces should be visually inspected, the weld wave should be uniform, and the edges of the weld should be smoothly transitioned to the base metal,

The shape and size of the weld should meet the requirements of the drawing, and the surface of the weld shall not have cracks, slag, unfused, porosity, weld tumors and arc pits;

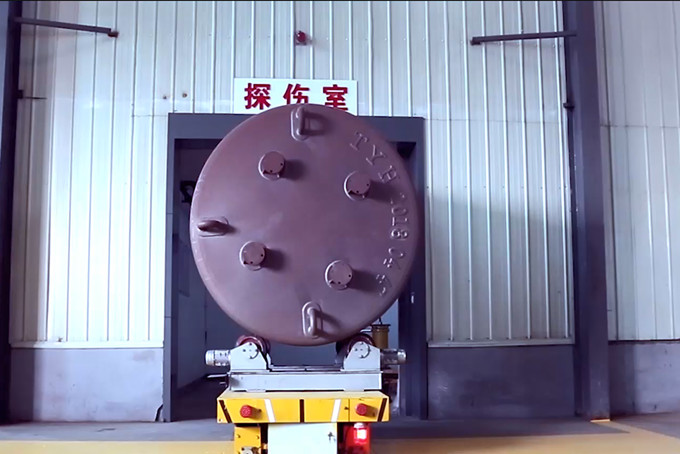

*We use ultrasonic flaw detection technique to complete the welding testing

About Painting.

* We use epoxy paint.

*Shot peening pretreatment will be the first step, and then we will paint the anticorrosive paint within 4 hours after pretreatment.

*We use high pressure airless spraying as much as possible.

* For the parts that are difficult to spray, such as  welding lines and frame edges, we usually  brush one or two layers before formal coating.

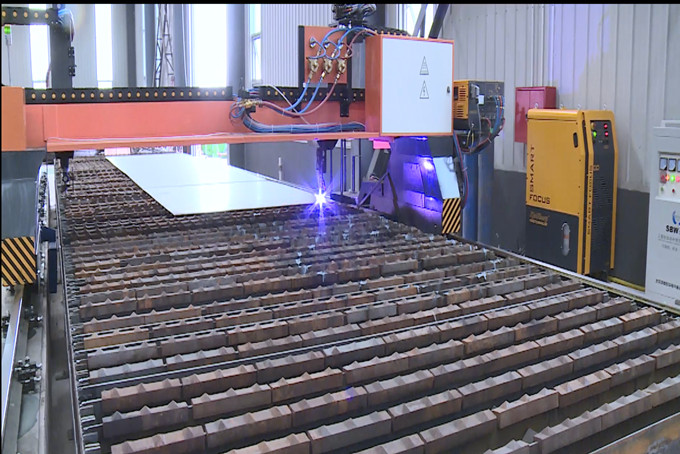

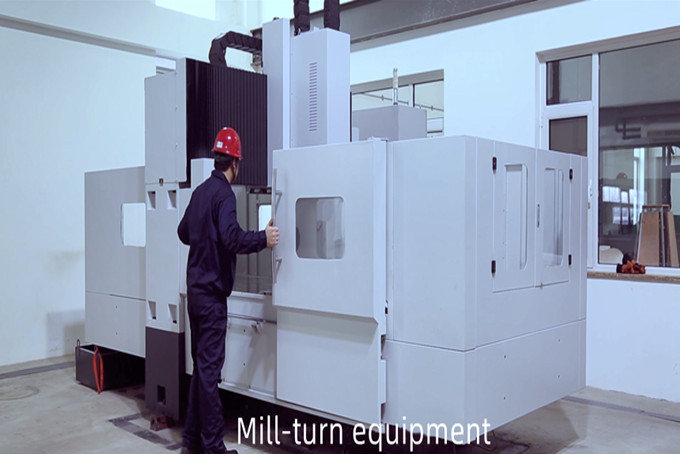

Pictures of processing equipment:

Advantages of ZAZ steel buoys:

> Cost-effective

> Excellent impact resistance

> Excellent buoyancy&stability

> Long service life

> High visibility
