With diameters ranging from 0.8m to 3.6m, our steel buoys can be used in inland rivers ,lakes and ocean.All steel plates are choosing from marine steel plate with hull thickness from 8
mm to 12mm.
Steel mooring buoy is available for anchorage of ships of different tonnage. It is quite convenient and flexible to operate as using mooring buoy in anchorage. On the berth goods lightering work and maintenance and repair of ships can be conducted. Therefore, the mooring buoy is the important anchoring facility of the port.
Specification:
| Type | Buoyancy (without chain) (t) | Diameter X Height (m) | Chain Diameter (mm) | Lifting Bye (mm) | Recommend Sinker (t) | Mooring Shackle (mm) | Suitable for Ship Tonnage (t) |
| 2.0 | 3 | 2.0*1.74 | 62 | 45 | 4 | 90 | <2000 |
| 2.6 | 6 | 2.6*2.27 | 70 | 45 | 6 | 90 | <5000 |
| 3.6 | 19 | 3.6*2.14 | 90-122 | 50 | 8 | 140 | <10000 |
| 5.0 | 28.5 | 5.0*3.4 | 122 | 60 | 12 | 140 | <12000 |
| 5.5 | 31.2 | 5.5*3.0 | 122 | <100000 | |||
| 6.0 | 34.2 | 6.0*3.2 | 122 | <150000 | |||
| 8.0 | 40.3 | 8.0*2.46 | 122 | 100 | 120 | 170 | <250000 |

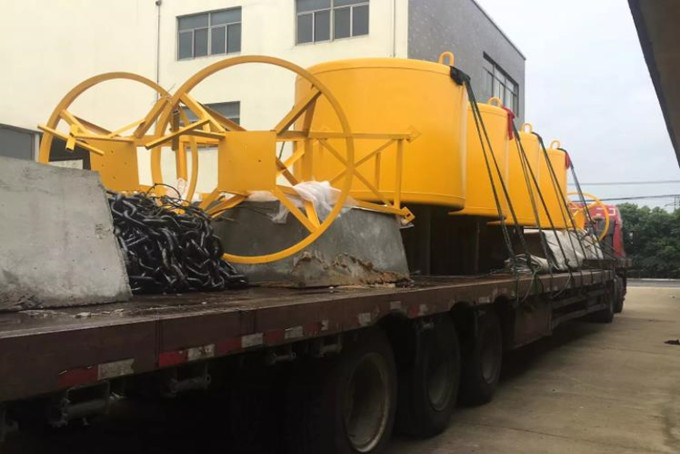

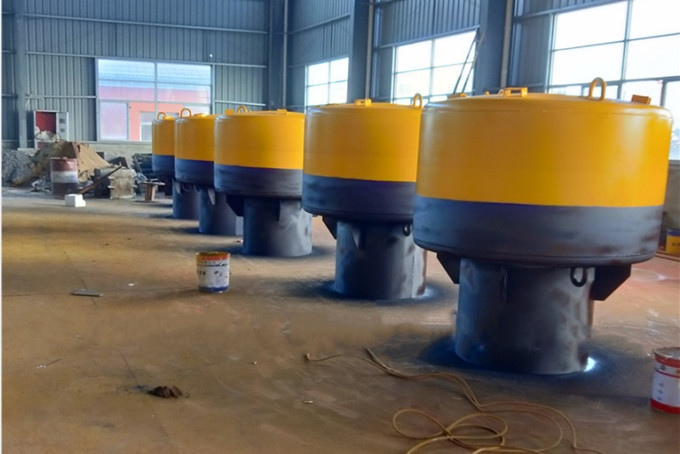

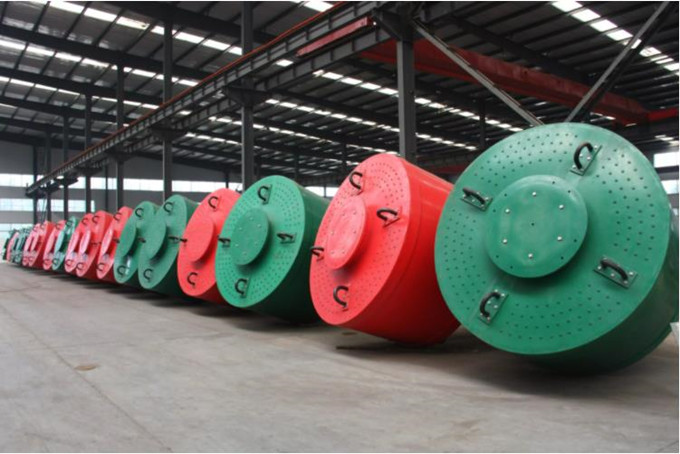

More pictures of steel buoys in detail:

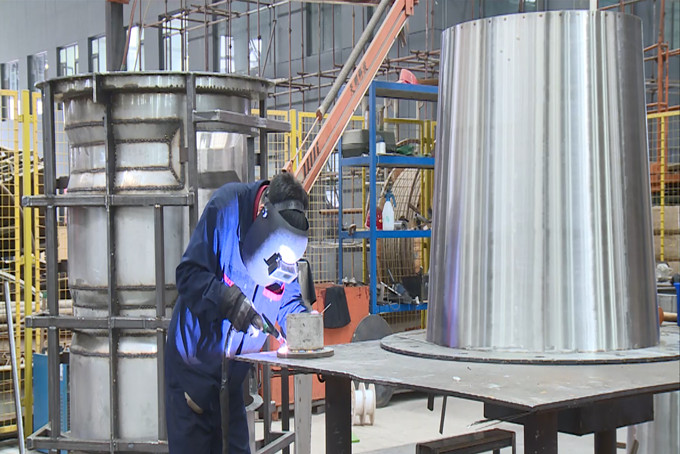

Pictures of our workshop:
About Welding.
* We use CO2 welding, manual welding,Submerged arc auto welding and automatic welding.
*All weld surfaces should be visually inspected, the weld wave should be uniform, and the edges of the weld should be smoothly transitioned to the base metal,
The shape and size of the weld should meet the requirements of the drawing, and the surface of the weld shall not have cracks, slag, unfused, porosity, weld tumors and arc pits;
*We use ultrasonic flaw detection technique to complete the welding testing
About Painting.
* We use epoxy paint.
*Shot peening pretreatment will be the first step, and then we will paint the anticorrosive paint within 4 hours after pretreatment.
*We use high pressure airless spraying as much as possible.
* For the parts that are difficult to spray, such as welding lines and frame edges, we usually brush one or two layers before formal coating.

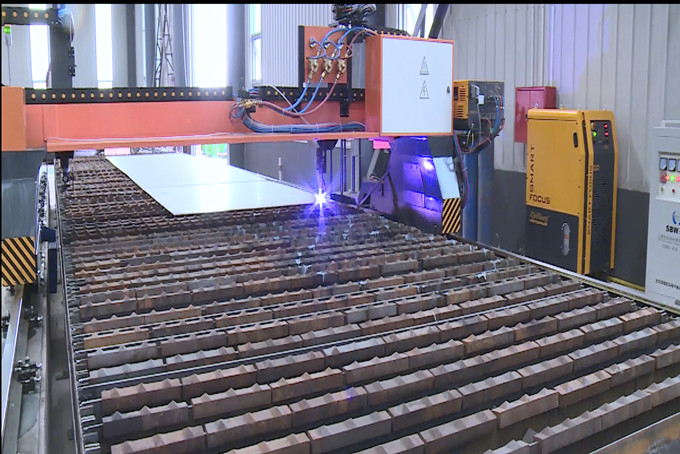

Pictures of our processing equipment:
Advantages of ZAZ steel buoys:
> Cost-effective
> Excellent impact resistance
> Excellent buoyancy&stability
> Long service life
> High visibility
