Diameter: 3000mm

With its modular design, the 3000mm diameter Polyethylene Buoys LLDPE Buoys can match various applications in harsh marine environment. The combination of its 3 main elements is custom-made according to site conditions and client requirements.

It has lower maintenance cost and it also incorporates more environmental-friendly materials and process than traditional steel buoys.

Produced by the last rotomoulding technology and highest quality meterial. Polyurethane foam filling inside the buoy will avoid and reduce change of leakage.

■ 4 segments of float in virgin polyethylene, UV stabilised and precompounded to reduce colour ageing, with standard wall thickness 12mm (higher available upon request), and expanded polystyrene (EPS) foaming

■ High Visibility Polyethylene (HVPE) or Aluminium (ALU) spar

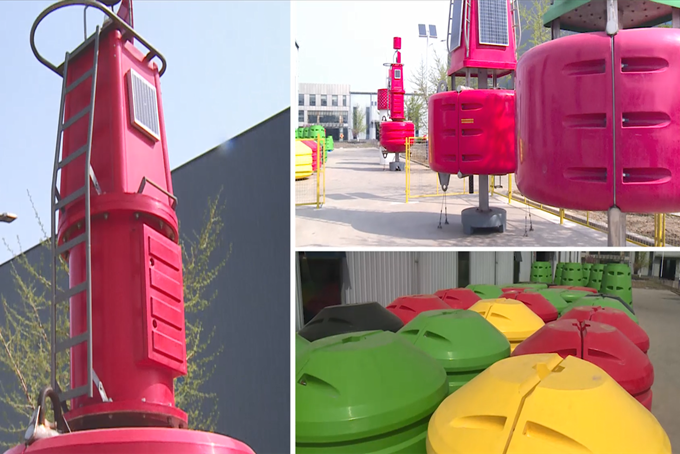

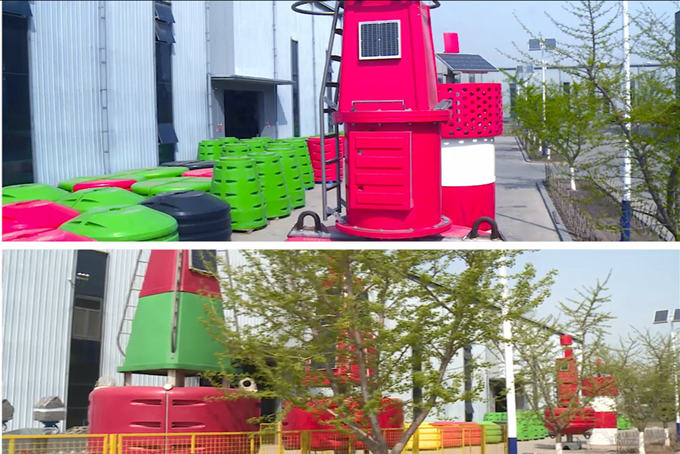

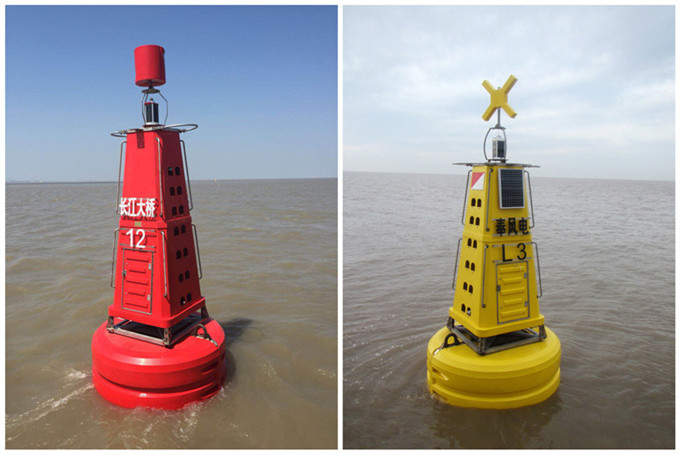

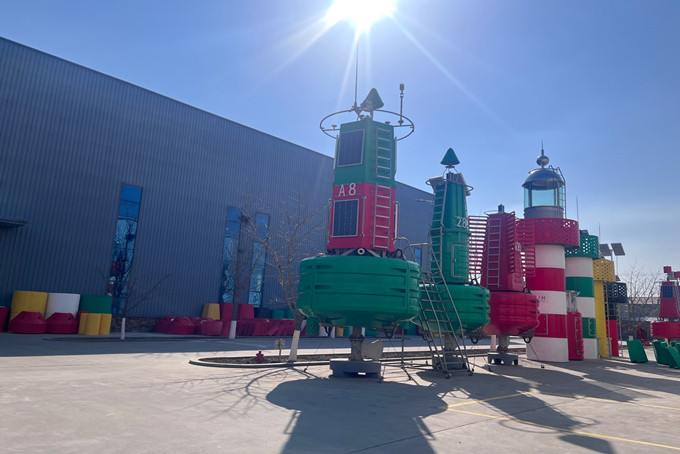

More pictures and informations in detail as below:

Frame material: Stainless 316L

Main material: LLDPE.

Floating stuff: water resistant polyurethane

UV resistance rating: UV20.

Color:  colors permitted by IALA.

Diameter:3000mm

Floating depth: 12mm

Weight: 4.1T.

Nominal draft: 2250mm

Nominal upperworks: 1050mm

Nominal Focal plane: 4895mm

Viewable area: 6.9m²

Radar reflection area: 6~10m²

^{Reserve buoyance:  40KN}

Maximum velocity: 7

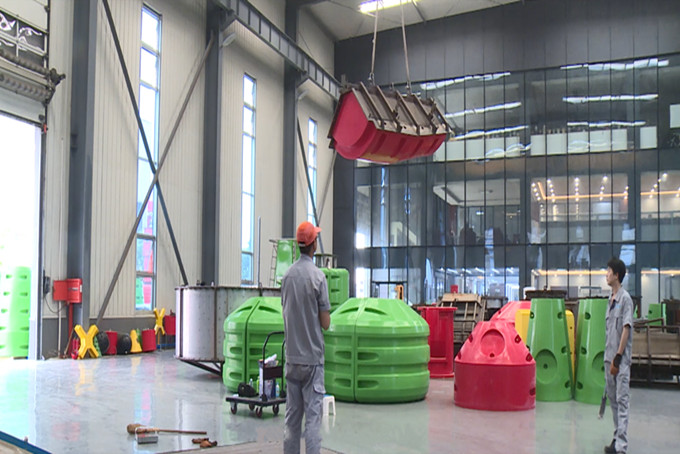

Pictures of our processing equipment:

Advantages of ZAZ LLDPE Buoys:

> Advanced framework design

> Durable practical

> More flexible,easy installation

>Safety and reliability.

>Economical, Good after service.

> Variety of end fitting to choose

>Good technical supports

> Abrasion resistant tough skin.
