Aseasonal Polyethylene Navigation Buoys comprises three parts of material: 316L stainless steel, rotomoulded, UV stabilized polyethylene sections and filling with anti-water polyurethane foam.
The Aseasonal Polyethylene Navigation Buoys adopt a streamlined structure design, which has good ice conductivity and visual performance. And it can reduce the degree of damage effectively during Ship collision. It is a high-performance, low-maintenance aseasonal buoy.

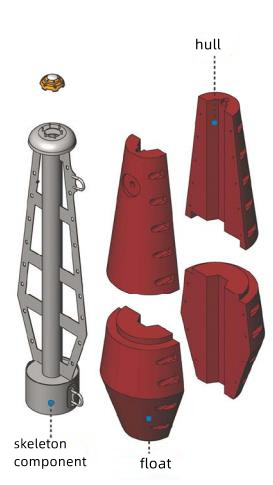

It used modular combination design, the strengthening of key parts is guaranteed by the advanced manufacturing process of structural design. When the module is damaged, it can be replaced on site, which is simple and fast.
The material of the rotomolded parts comes with its own color without painting, and the buoy production process is green and pollution-free. The overall material of the buoy is efficient and environmentally friendly, and can be recycled.
The main material of hull is 316L stainless steel, which has high corrosion resistance and can be used in harsh condition. Equipped with galvanised steel mooring and lifting eyes making the buoy easy to handle.

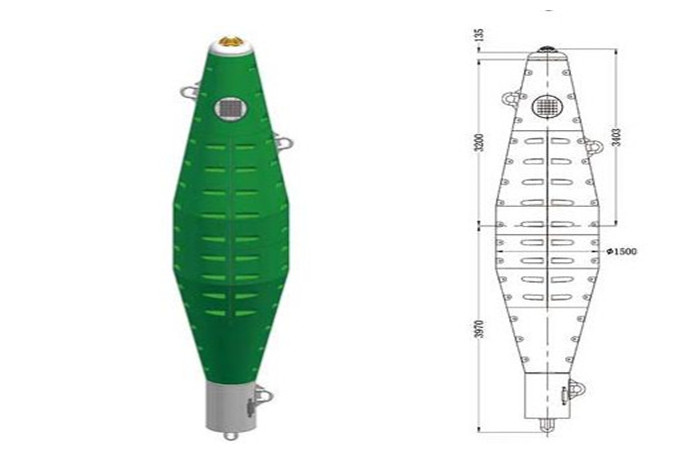

| TECHNICAL DATA | |
|---|---|
| DIMENSIONS | |
| Body Diameter (nominal) | 1500 mm |
| Thickness minimum | 10 mm |
| Focal plane | 3403mm |
| Draught (without mooring) | 3970mm |
| Free Board | 3335mm |
| Viewable area | 3.6m2 |
| Air weight | 3200 kg |
| STANDARD EQUIPMENT | |
| Buoyance | 31.4KN |
| STRUCTURE + RADAR REFLECTOR | GALVANIZED STEEL |
| STRUCTURE + RADAR REFLECTOR | SHELL: Rotomoulded polyethylene CORE: Polyurethane foam (All IALA colours avaible) |
| MOORING EYE | GALVANIZED STEEL |
> Advanced framework design
> Durable practical
> More flexible,easy installation
>Safety and reliability.
> Made for high UV environments
>Characterized by a superstructure
>Provide excellent stability and strength
> Require low maintenance
> Easy to handle and deploy
> Abrasion resistant tough skin
