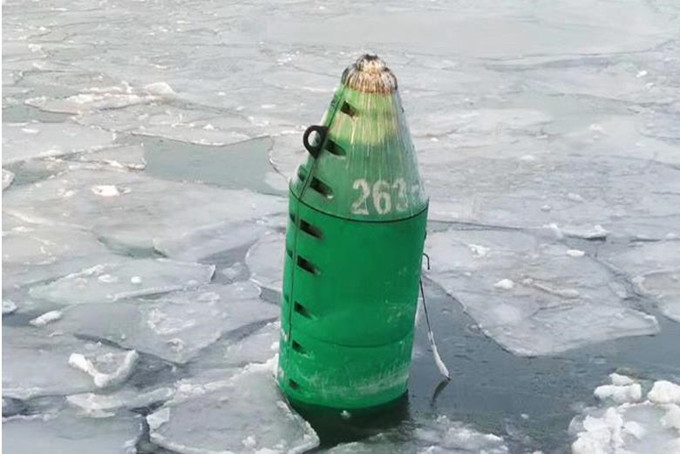

The 1500mm diameter Ice Spar Buoys is a rotomoulded unlighted polyethylene buoy developed for operation in ice conditions. This buoy is designed to replace steel buoys used in regions with ice. The 1500mm diameter Ice Spar Buoys offers a good marking with less need of maintenance.
Our 1500mm diameter Ice Spar Buoys are designed as floating navigational aids that withstand harsh winter conditions and heavy ice loads.

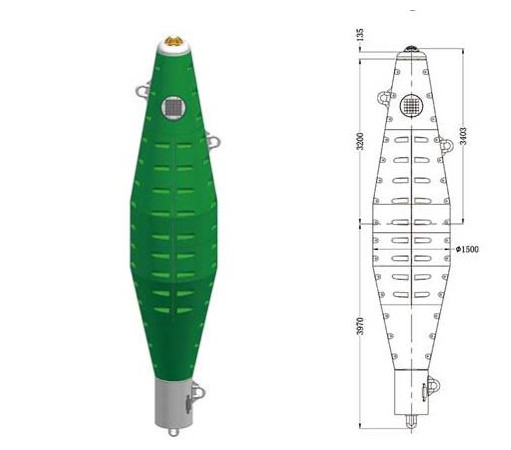

| TECHNICAL DATA | |
|---|---|
| DIMENSIONS | |
| Body Diameter (nominal) | 1500 mm |
| Thickness minimum | 10 mm |
| Focal plane | 3403mm |
| Draught (without mooring) | 3970mm |
| Free Board | 3335mm |
| Viewable area | 3.6m2 |
| Air weight | 3200 kg |
| STANDARD EQUIPMENT | |
| Buoyance | 31.4KN |
| STRUCTURE + RADAR REFLECTOR | GALVANIZED STEEL |
| STRUCTURE + RADAR REFLECTOR | SHELL: Rotomoulded polyethylene CORE: Polyurethane foam (All IALA colours avaible) |
| MOORING EYE | GALVANIZED STEEL |
Benifits of our ZAZ 1500mm diameter Ice Spar Buoys:
> Made for high UV environments
> Characterized by a superstructure
> Provide excellent stability and strength
> Require low maintenance
> Easy to handle and deploy
