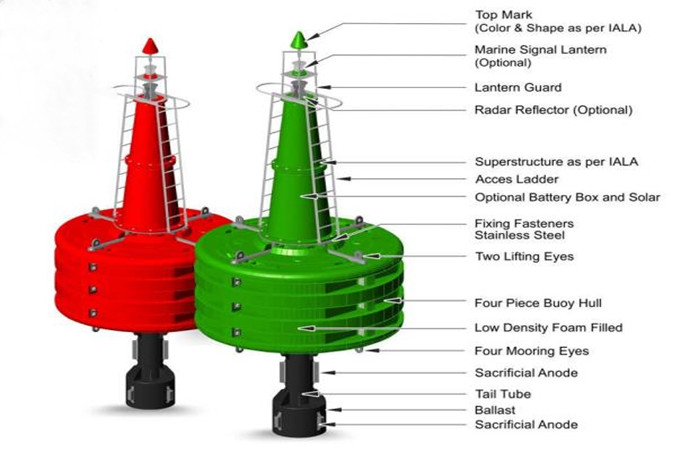

3000 diameter polyethylene navigation buoys is designed for harsh, open sea conditions. Four rotationally moulded hull sections are supported by strong steel frame combined with a moulded superstructure.
Material: Rotationally moulded UV-stabilised virgin polyethelene.
Color: Red, green, white, yellow combinations as per IALA requirements.
Filling: Closed cell low density polyurethane foam.
Hull diameter: 3000mm.
Weight: 3800kg.
Lifting eye: 4
Mooring eye: 4
Reserve Buoyancy: 2700kg
Maximum Mooring load: 2500kg
Submergence: 72.41kg/cm
Freeboard: 9500 without mooring
Draft: 2550mm without mooring.
Focal height: 4400mm without mooring.
All IALA combinations are available together with options of top and day marks, solar and batteries together with a host of sea and weather sensors.
