The Polyethylene marine buoy ocean buoy is manufactured from UV-stabilised, virgin polyethylene and has been specifically designed to withstand the harsh marine environment, and operate reliably with minimal maintenance.

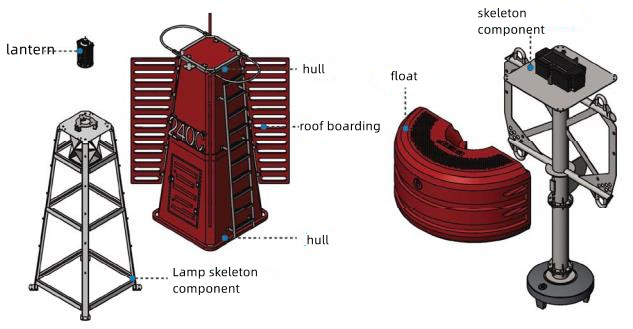

It used modular combination design, the strengthening of key parts is guaranteed by the advanced manufacturing process of structural design. When the module is damaged, it can be replaced on site, which is simple and fast.
The material of the rotomolded parts comes with its own color without painting, and the buoy production process is green and pollution-free. The overall material of the buoy is efficient and environmentally friendly, and can be recycled.

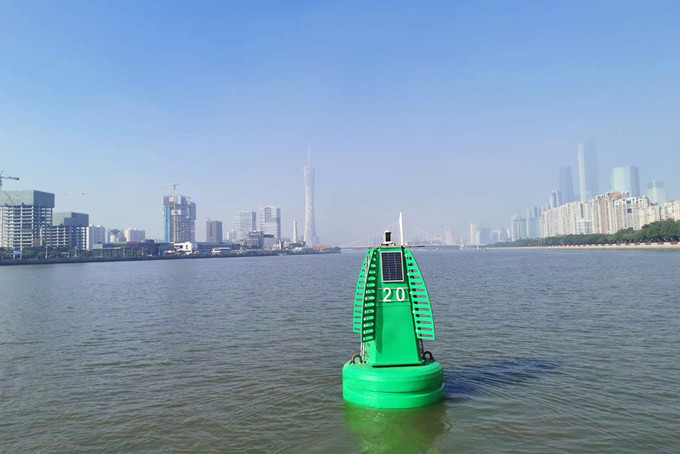

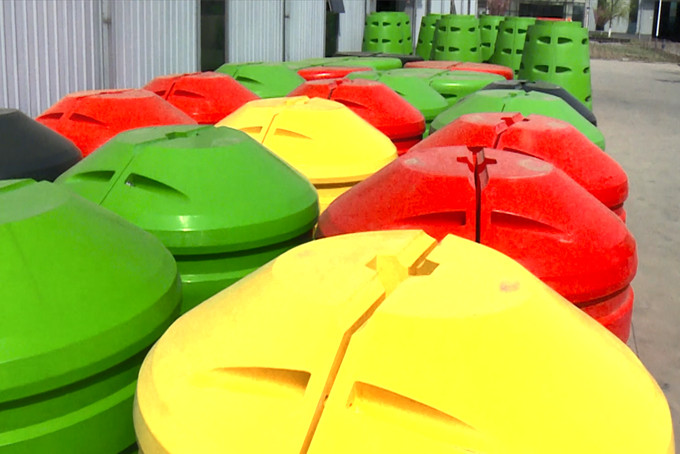

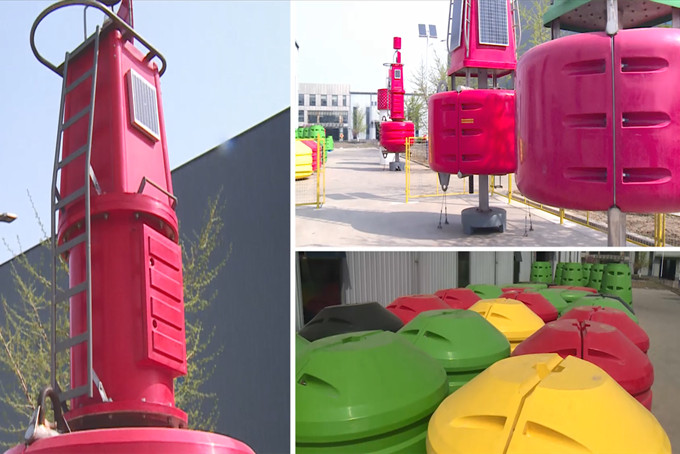

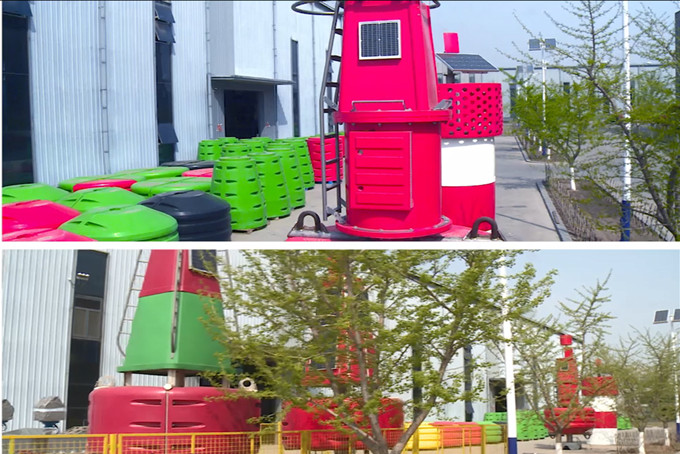

Pictures of Polyethylene marine buoy ocean buoy in detail:
Frame material: Stainless 316L
Main material: LLDPE.
Floating stuff: water resistant polyurethane foam
UV resistance rating: UV20.
Color: colors permitted by IALA.
Diameter:2400mm
Floating depth: 12mm
Weight: 2.15T.
Nominal draft: 2965mm
Nominal upperworks: 945mm
Nominal Focal plane: 4544mm
Viewable area: 9m2
Radar reflection area: 6~10m2
Reserve buoyance: 21KN
Maximum velocity: 7

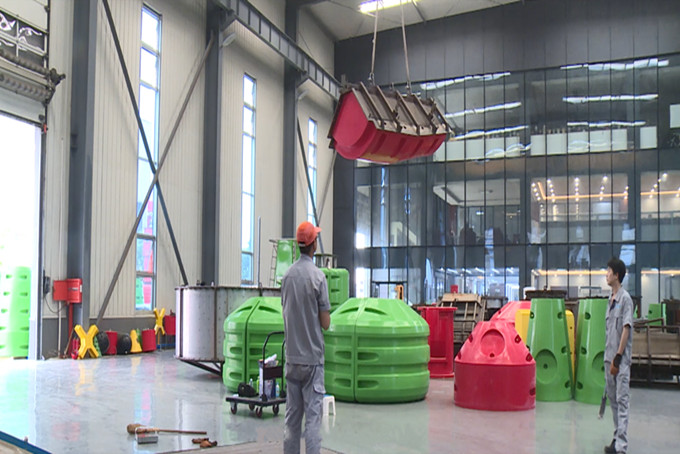

Pictures of our workshop：
Please Feel free to send your inquiry in the form below. We will reply you in 24 hours.
