The1800mm buoy range is a modular design with a unique central core steel arrangement connecting the lifting eyes to the mooring eyes for superior strength and durability. The buoy is manufactured using marine grade (UV Stabilised) polyethylene material.
Description
Ø1800mm polyethylene Buoy
Diameter 1800mm
Nominal Focal Height 2400mm
Nominal Height 3600mm
Nominal Draft 600mm
Nominal Weight 650kg
Top Marks In accordance with IALA Maritime Buoyage System
Colours In accordance with IALA Maritime Buoyage System
Life Expectancy Up to 20 Years
Lantern Options Self-Contained Lanterns, Lantern only option on request
Features:
*Manufactured from marine grade (UV stabilised) virgin polyethylene.
*Solid ballast plate adding extra protection to the underside of the buoy hull.
*Reduced hydrodynamic drag and the watch circle (swing radius).
*316 Grade stainless steel top mark hand rail.
*Fitted with two large lifting eyes for ease of installation and during maintenance.
*Mooring eyes (bridal system) for increased stability in harsh marine environments.
*Mooring eyes fitted with replaceable sacrificial wear bushings.
*Stands upright on the deck of vessel for ease of storage on site.
*Modular design making it easier to replace damaged parts if necessary.
*Replaceable sacrificial anodes for corrosion protection.
*Open central core for data applications available.
*All JFC Marine Buoys are manufactured using 100% recyclable material.

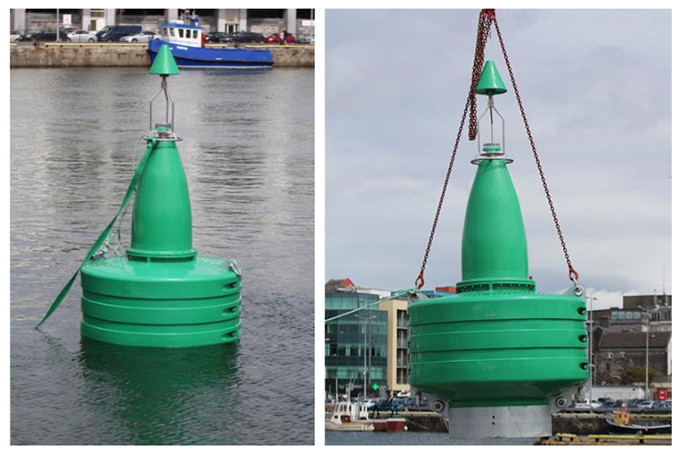

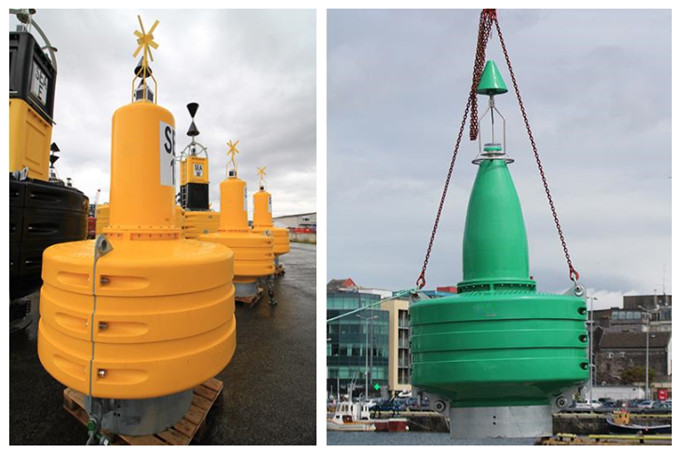

Pictures in detail:

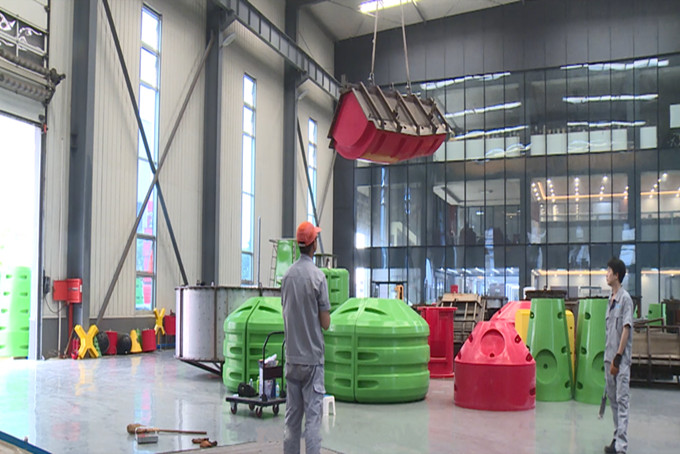

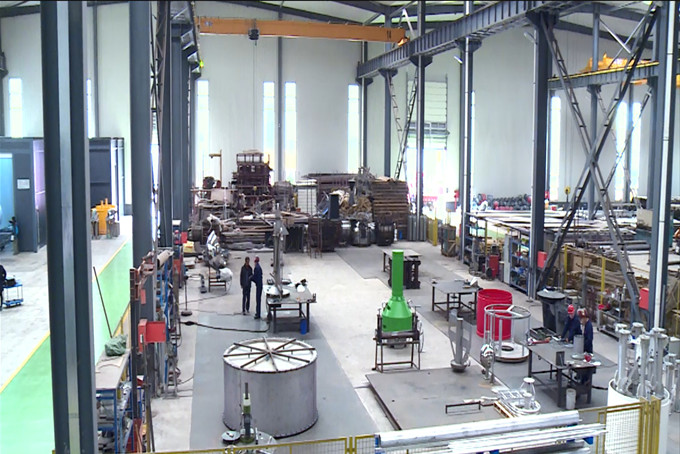

Pictures of our ZAZ workshop：

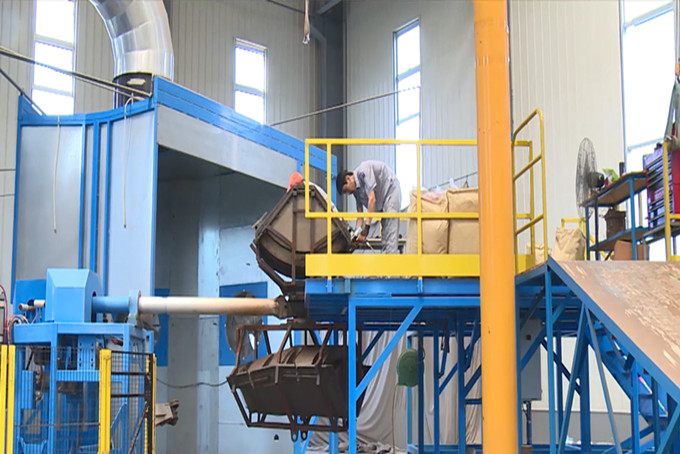

Pictures of our processing equipment:
