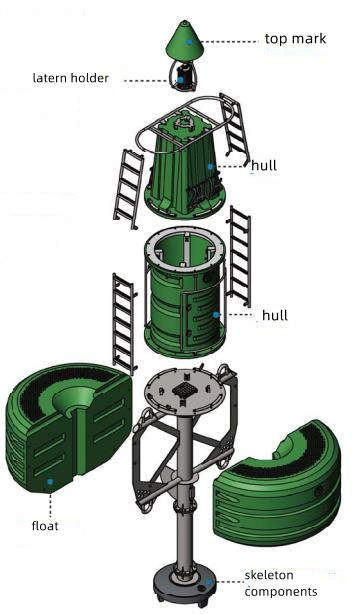

It used modular combination design, the strengthening of key parts is guaranteed by the advanced manufacturing process of structural design. When the module is damaged, it can be replaced on site, which is simple and fast.

The material of the rotomolded parts comes with its own color without painting, and the buoy production process is green and pollution-free. The overall material of the buoy is efficient and environmentally friendly, and can be recycled.

Frame material: Stainless 316L

Main material: LLDPE.

Floating stuff: water resistant polyurethane foam

UV resistance rating: UV20.

Color:  colors permitted by IALA.

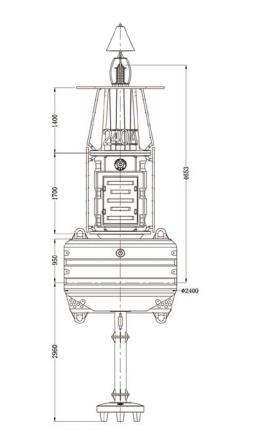

Diameter:2400mm

Floating depth: 12mm

Weight: 2.1T.

Nominal draft: 2960mm

Nominal upperworks: 950mm

Nominal Focal plane: 4653mm

Viewable area: 5.3m2

Radar reflection area: 6~10m2

Reserve buoyance:  20.6KN

Maximum velocity: 7
