Frame material: Stainless 316L

Main material: LLDPE.

Floating stuff: water resistant polyurethane foam

UV resistance rating: UV20.

Color:  colors permitted by IALA.

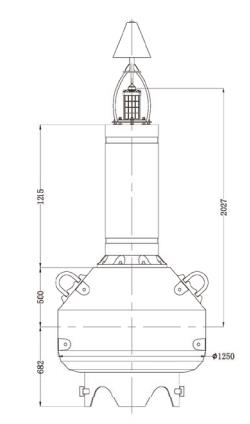

Diameter:1250mm

Floating depth: 10mm

Weight: 0.5T.

Nominal draft: 682mm

Nominal upperworks: 500mm

Nominal Focal plane: 2027mm

Viewable area: 1.1m2

Radar reflection area: 6~10m2

Reserve buoyance:  4.9KN

Maximum velocity: 6

More information and pictures in detail as below:

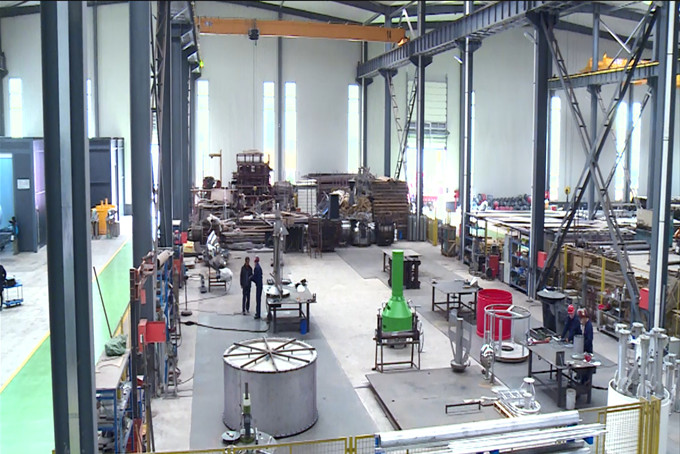

Pictures of our workshop:

Advantages of ZAZ LLDPE Buoys:

1. Superior corrosion resistance: Made with high-quality 316L stainless steel skeleton, our lighting buoys withstand harsh sea mist and seawater conditions, ensuring longevity in marine environments.

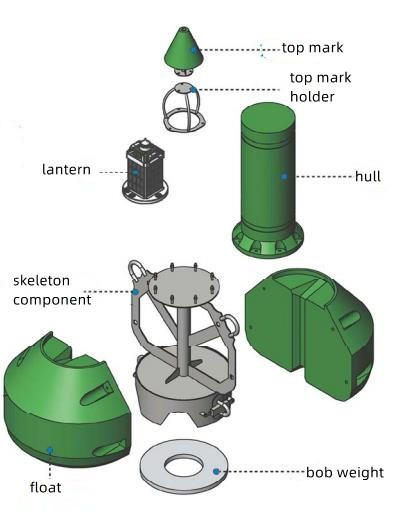

2. Robust construction: The modular design of our lighting buoys, strengthened by advanced structural engineering and manufacturing processes, ensures durability and easy onsite replacement of damaged modules.

3. UV-resistant and vibrant colors: The rotomolded parts are manufactured with LLDPE material in compliance with IALA Association industry standards, and have been tested for 20000h UV rating according to ASTM2565, maintaining vibrant colors and visibility.

4. Unparalleled safety: The buoy's internal filling material, a two-component polyurethane, has a closed pore rate of over 90%, preventing water ingress even after damage and ensuring the buoyancy required for safe navigation.

5. Modular and easy to replace: Modular combination design allows for simple and fast replacement of damaged modules on-site, minimizing downtime and maintenance costs.

6. Environmentally friendly: The rotomolded parts come with their own color, eliminating the need for painting and making the production process green and pollution-free. The overall material of the buoy is efficient and environmentally friendly.
