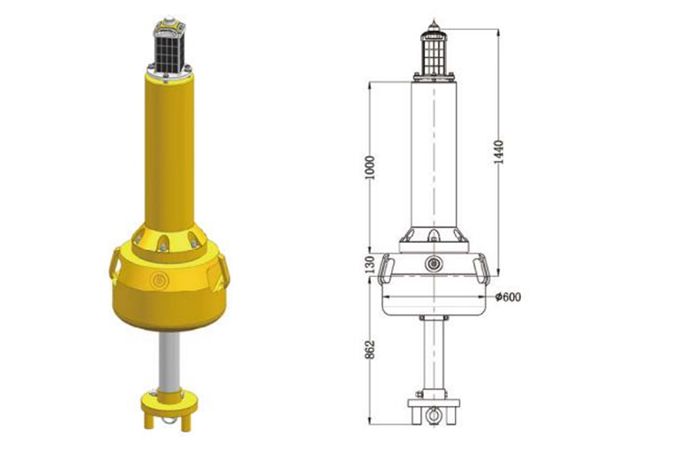

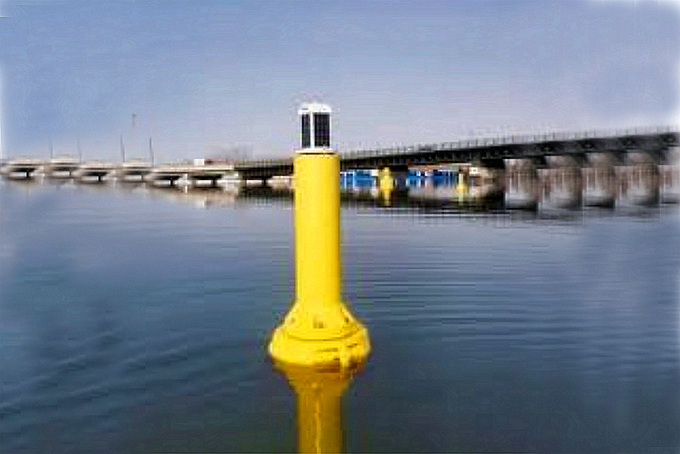

This is a 0.6m diameter navigation buoy designed for inland waterways, offshore ports, or coastal applications.

Composing Materials

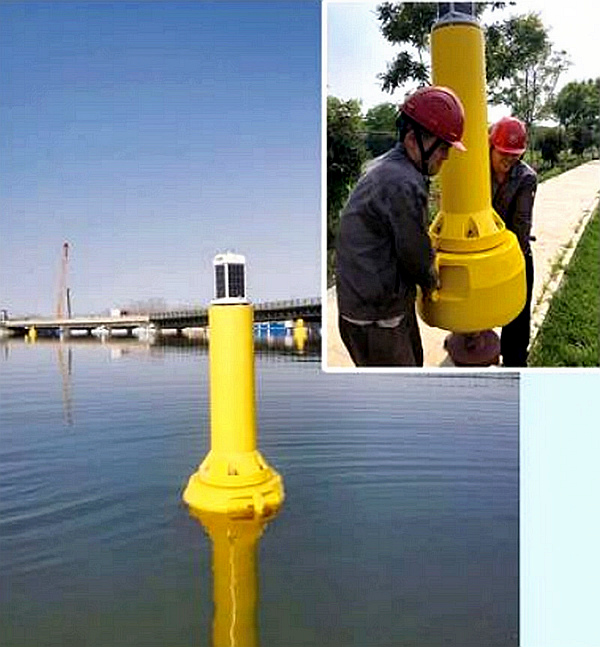

The polyethylene buoy mainly comprises a 316L stainless steel skeleton and rotational molding theme module, the buoy shape is lightweight, weighs only 67kg, and is easy to operate manually.

① The main skeleton material is 316L stainless steel, which has particularly good corrosion resistance in sea mist and seawater with a large amount of salt and can be used under harsh conditions.

② The rotomolded parts are made of LLDPE, and the color of the finished product conforms to the industry standard of the IALA Association, after the 20000h UV Rating test according to the ASTM2565 standard, its chromaticity coordinate value is still within the IALA standard.

③ The internal filling material of the buoy is a two-component polyurethane material, and the closed pore rate is greater than 90%, which ensures that the float will not sink due to water ingress after damage, resulting in the safety of navigation.

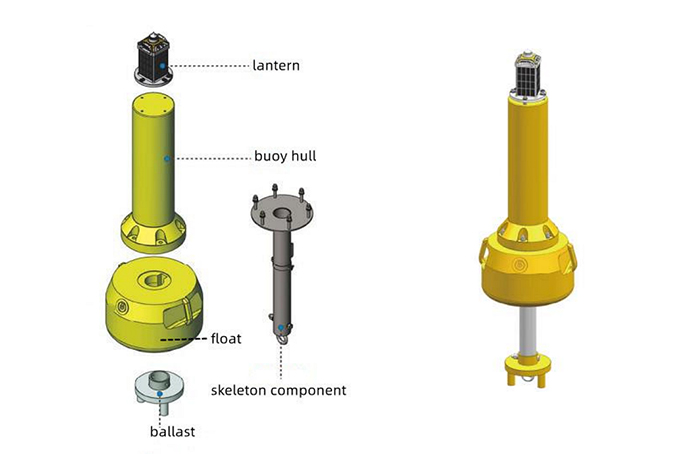

④ Modular combination design, the strengthening of key parts by the structural design, advanced manufacturing process to ensure. When the module is damaged, it can be replaced on-site, which is simple and fast.

The material of the rotomolded parts comes with its color, so we do not need to paint and the buoy production process is green and pollution-free. The overall material of the buoy is efficient and environmentally friendly.

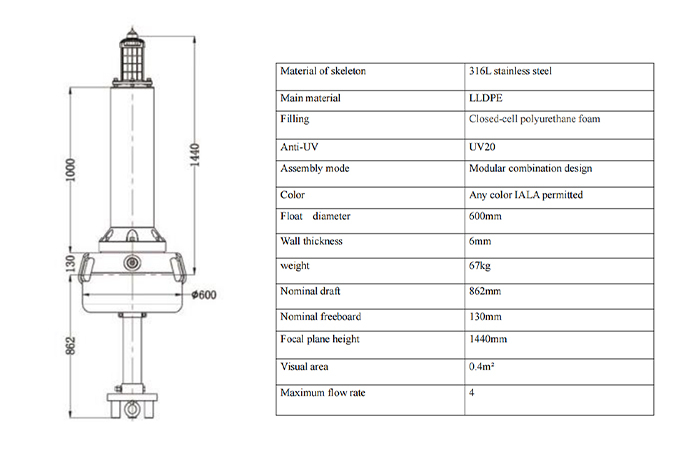

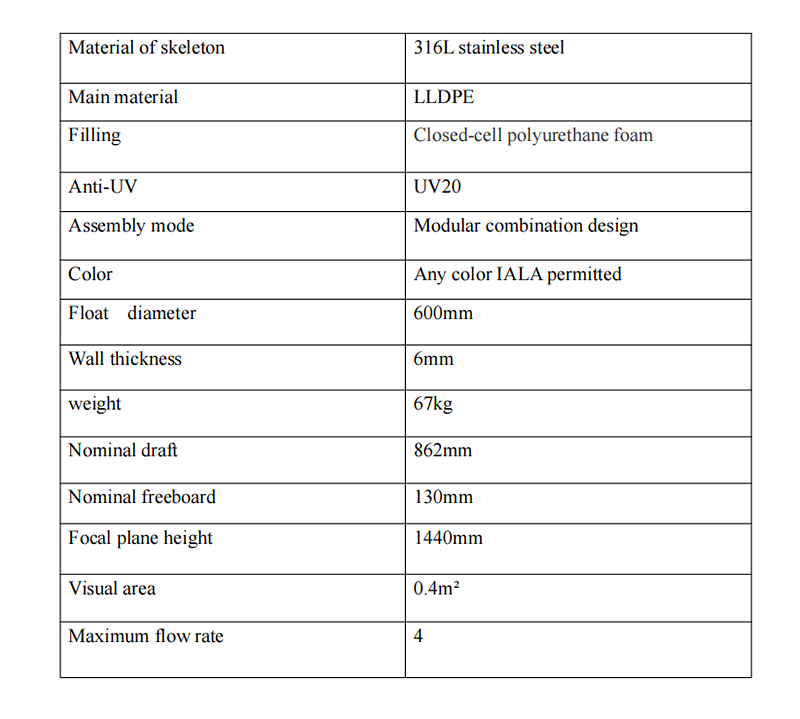

Specifications:

We have many kinds of LLDPE buoys suitable for the IALA standard. You can customize the size and color of buoys according to your needs. If you want to know more specification information about our polyethylene buoys, don't hesitate, come and contact us now!
