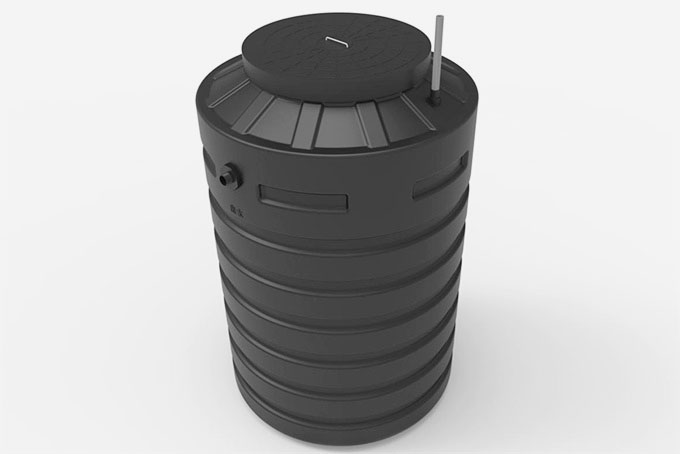

Household sewage purification tank

Integrated intelligent purification tank

1. Equipment introduction

MBR (Membrane Bio-Reactor) is a new type of wastewater

treatment system that organically combines membrane

separation technology and biological treatment technology.

The membrane components replace the terminal secondary

sedimentation tank of traditional biological treatment

technology, maintain a high concentration of activated

sludge in the bioreactor, reduce the organic load of

biological treatment, thereby reducing the footprint of

sewage treatment facilities, and reduce the amount of

residual sludge by maintaining a low sludge load.

It mainly uses activated sludge and macromolecular

organic matter in the interception tank of the membrane

separation equipment immersed in the aerobic biological

pool. The concentration of activated sludge (MLSS) in the

membrane bioreactor system can be increased to 8000~10,000mg/L,

or even higher; the sludge age (SRT) can be extended to more

than 30 days.

2. Equipment process flow
