PE steel belt reinforced pipe

I. Product introduction

Steel belt reinforced PE spiral corrugated pipe is

an advanced pipe structure formed by winding a

polyethylene-reinforced by steel belt.

It is the latest technology in the international

synchronization and is the most rigid pipe among

many plastic structural pipes.

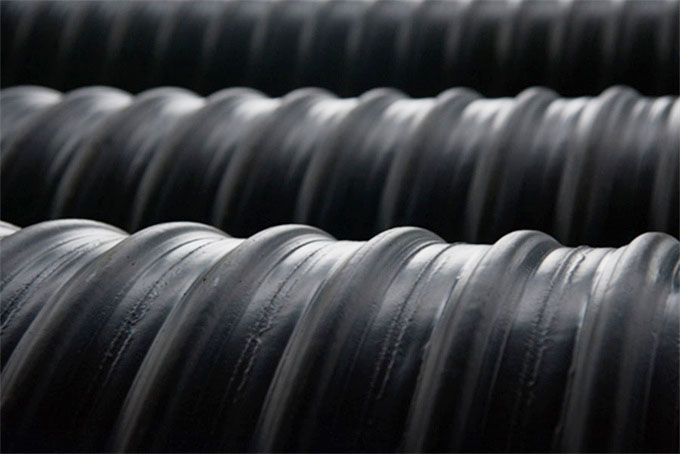

PE steel belt reinforced pipe (Figure 1)

II. Product features

The metal-reinforced spiral corrugated pipe for underground

drainage is a structural wall pipe made of HDPE and steel melt

composite.

The pipe wall structure consists of three layers:

the inner layer is a continuous solid wall inner layer pipe,

the outer layer of the inner layer pipe is wrapped with

a steel plate folded into an inverted "U" shape annular

corrugated steel plate reinforcement, and the outer layer of

HDPE with the same waveform as the steel plate reinforcement

is composited on the coated corrugated steel plate reinforcement.

The new structure and scientific and reasonable molding process

give the pipe unique advantages.

·High bonding strength and reliable performance

·High ring stiffness, large diameter, wide range of diameter

 selection, ring stiffness ≥8kN/m2, diameter from DN300mm-DN2000mm.

·Easy to connect, no leakage.

·Corrosion resistant, service life can reach 50 years. Steel belt

 reinforced PE spiral corrugated pipe connection method

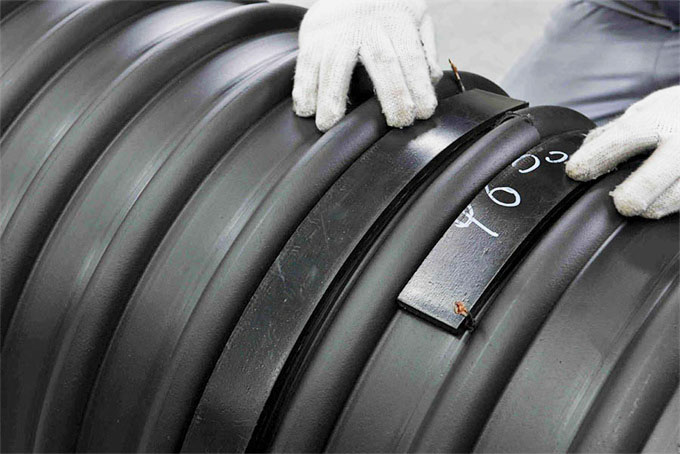

·Electric hot melt belt connection method Hot melt extrusion

welding connection method

·Heat shrink tube (belt) connection method Clamp (Hal sleeve)

 connection method

·Socket connection method

Our company recommends that the steel belt-reinforced polyethylene

 PE spiral corrugated pipe adopts the combination of electric

 hot melt belt welding and hot melt extrusion welding.
