Sea Star Series Data Monitoring Buoy

Sea Star Series Data Monitoring Buoy adopts advanced manufacturing technology and processes, and uses linear low-density polyethylene material. It is applied to floating bodies, visible areas, and other parts, fully leveraging the excellent performance of the material. The product has a reasonable structural design, is sturdy, durable, and aesthetically pleasing in appearance, with excellent visual effects, improving navigation assistance performance and providing strong guarantees for ship navigation safety.

Sea Star Series Data Monitoring Buoy

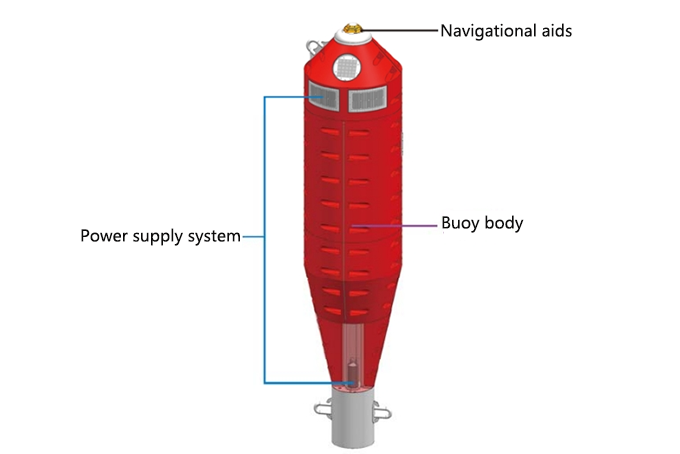

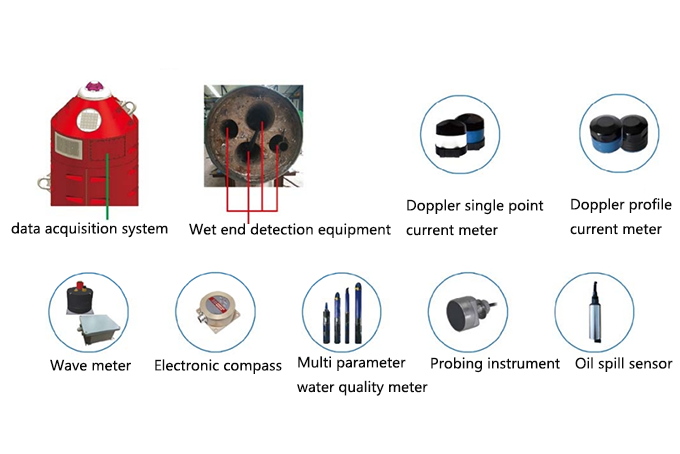

Bullet Points for Sea Star Series Data Monitoring Buoy: 1. Advanced manufacturing technology and materials - Utilizes linear low-density polyethylene material for buoyancy and visibility, providing excellent performance in harsh marine environments. 2. Durable and aesthetically pleasing design - Features a sturdy 316L stainless steel frame, sculpted main module, high-capacity lithium battery, and solar panels for extended operation and enhanced navigational safety. 3. Versatile applications - Suitable for hydrological monitoring in marine farms, water sources, and other water bodies, with the ability to accommodate multiple environmental monitoring devices. 4. Corrosion-resistant and UV-stable materials - 316L stainless steel frame withstands corrosive seawater, while the linear low-density polyethylene material retains color integrity even after prolonged UV exposure. 5. Modular construction and eco-friendly production - Allows for easy on-site replacement of damaged modules, and the buoy's materials are recyclable and produced using green manufacturing processes.

Specification

Buoyance

32.3KN

Main material

LLDPE

Filling

Closed-cell polyurethane foam



Anti-UV

UV20

Assembly mode

Modular combination design

Color

Any color IALA permitted

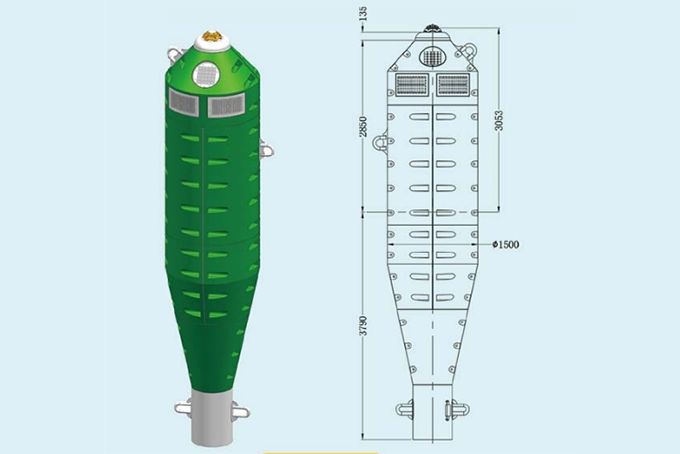

Float  diameter

1500mm

Wall thickness

10mm

weight

3.3T

Nominal draft

3790mm

Nominal freeboard

2985mm

Focal plane height

Solar panel power

3053mm

110W

Visual area

4

Maximum flow rate

Radar reflection area

Skeleton material

For every 100kg increase in freeboard reduction

6

6~10m²

316L stainless steel

65mm
