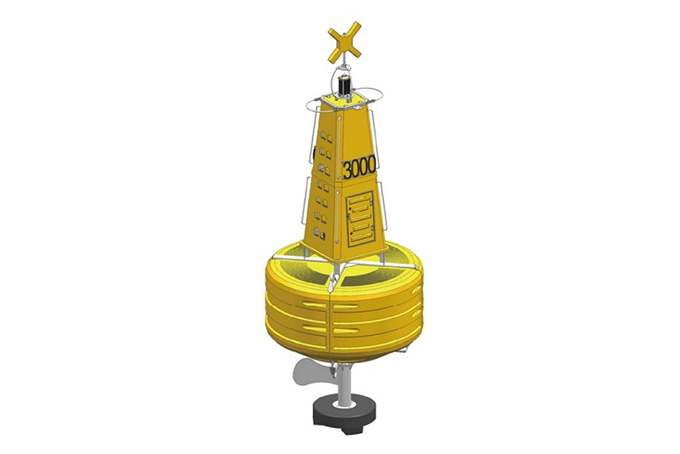

The Seal Series Rotationally Molded Buoy employs advanced manufacturing technology and processes, utilizing linear low-density polyethylene material in buoyancy, visibility, and top mark components, fully leveraging the outstanding properties of the material. The product features a rational structural design, robust durability, aesthetic appearance, excellent visual effects, and enhanced navigational performance, providing a powerful guarantee for the safety of vessel navigation.
1. Advanced Manufacturing Technology and Craftsmanship: The 3000mm Seal Series Buoy is constructed using cutting-edge manufacturing technology and craftsmanship, ensuring durability and a visually appealing design.
2. Corrosion Resistant Materials: The main structure of the buoy is made of 316L stainless steel, providing exceptional corrosion resistance in saltwater environments, making it ideal for river and harbor navigation.
3. High-Quality Linear Low-Density Polyethylene: The buoy's components, including the floating body, visibility aids, and top markings, are made from linear low-density polyethylene, meeting industry standards for color and UV resistance even after 20,000 hours of testing.
4. Reliable Flotation: The buoy is filled with closed-cell polyurethane foam, with a closed-cell rate of over 90%, ensuring that in the event of damage, it remains afloat and can maintain navigational safety without sinking.

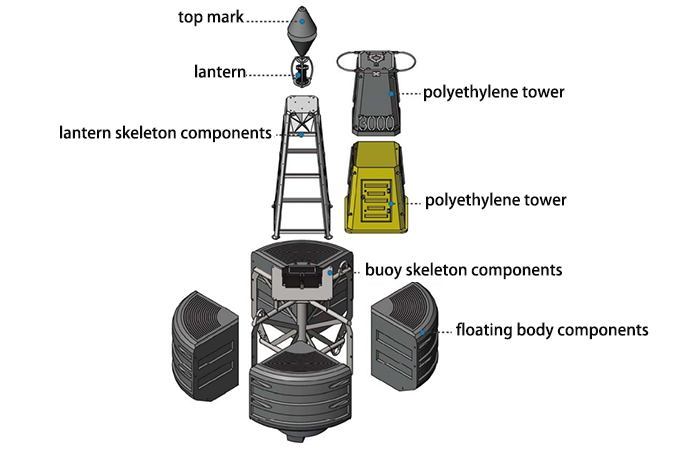

5. Modular Design and Easy Maintenance: The buoy features a modular design, allowing for quick and easy replacement of damaged or worn-out modules on-site. The reinforced key components are guaranteed by structural design and advanced manufacturing processes.
Overall, the 3000mm Seal Series Buoy offers superior navigational performance, with its corrosion-resistant materials, durable construction, and environmentally friendly production process. A reliable and efficient solution for enhancing maritime safety.
Specification
Buoyance | 40KN |
Main material | LLDPE |
Filling | Closed-cell polyurethane foam
|
Anti-UV | UV20 |
Assembly mode | Modular combination design |

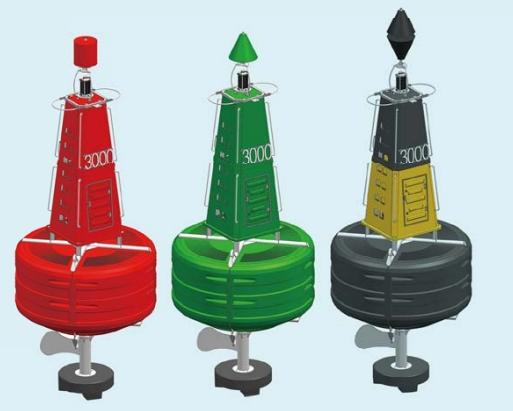

Color | Any color IALA permitted |

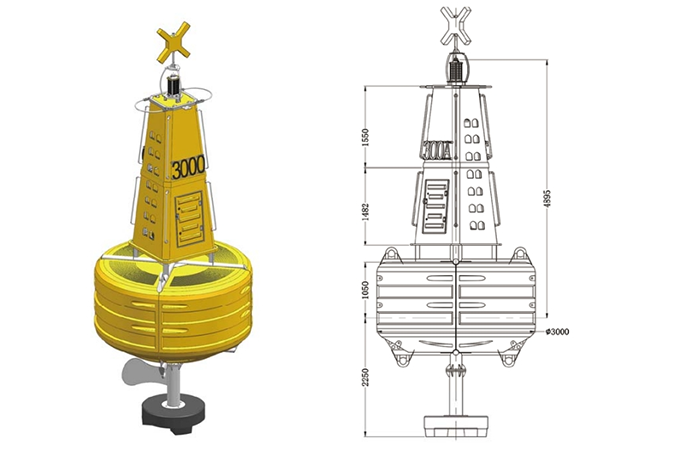

Float diameter | 3000mm |
Wall thickness | 12mm |
weight | 4.1T |
Nominal draft | 2250mm |
Nominal freeboard | 1050mm |
Focal plane height | 4895mm |
Visual area | 6.9m² |
Maximum flow rate Radar reflection area For every 100kg increase in freeboard reduction | 7 6~10m² 15mm |
