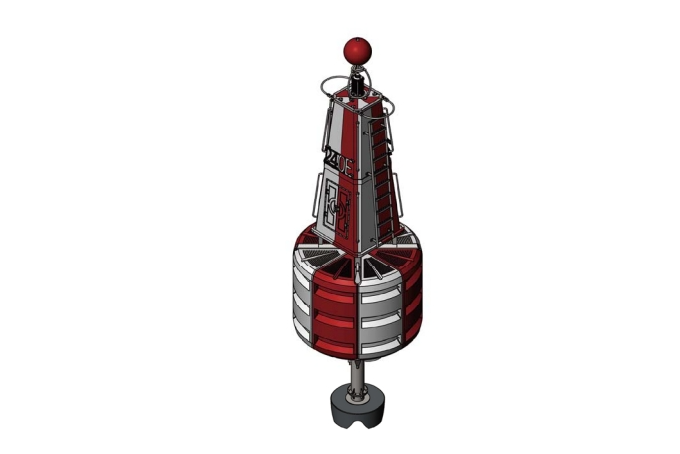

The 2400mm Seal Series Buoy

The Seal Series Rotationally Molded Buoy employs advanced manufacturing technology and processes, utilizing linear low-density polyethylene material in buoyancy, visibility, and top mark components, fully leveraging the outstanding properties of the material. The product features a rational structural design, robust durability, aesthetic appearance, excellent visual effects, and enhanced navigational performance, providing a powerful guarantee for the safety of vessel navigation.

The 2400mm Seal Series Buoy



1. Advanced Manufacturing Technology and Craftsmanship: The 2400mm Seal Series Buoy is constructed using cutting-edge manufacturing technology and craftsmanship, ensuring durability and a visually appealing design.

 2. Corrosion Resistant Materials: The main structure of the buoy is made of 316L stainless steel, providing exceptional corrosion resistance in saltwater environments, making it ideal for river and harbor navigation.

 3. High-Quality Linear Low-Density Polyethylene: The buoy's components, including the floating body, visibility aids, and top markings, are made from linear low-density polyethylene, meeting industry standards for color and UV resistance even after 20,000 hours of testing.

 4. Reliable Flotation: The buoy is filled with closed-cell polyurethane foam, with a closed-cell rate of over 90%, ensuring that in the event of damage, it remains afloat and can maintain navigational safety without sinking.

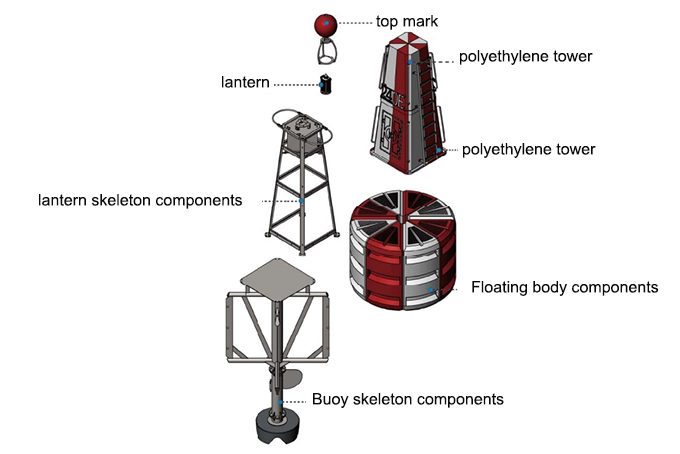

 5. Modular Design and Easy Maintenance: The buoy features a modular design, allowing for quick and easy replacement of damaged or worn-out modules on-site. The reinforced key components are guaranteed by structural design and advanced manufacturing processes.

 Overall, the 2400mm Seal Series Buoy offers superior navigational performance, with its corrosion-resistant materials, durable construction, and environmentally friendly production process. A reliable and efficient solution for enhancing maritime safety.

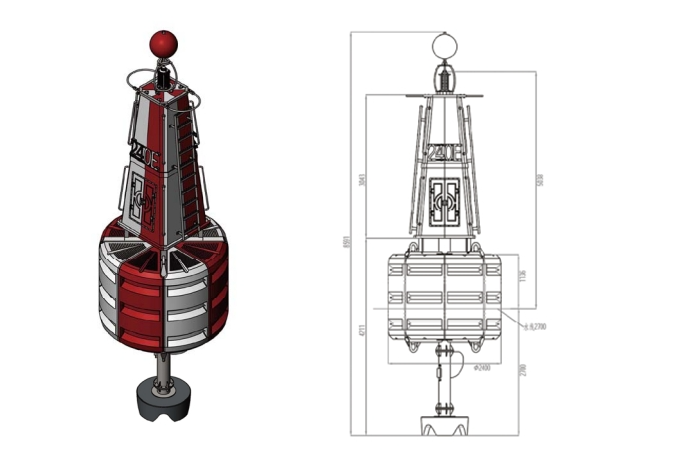

Specification



Buoyance

28.6KN

Main material

LLDPE

Filling

Closed-cell polyurethane foam



Anti-UV

UV20

Assembly mode

Modular combination design

Color

Any color IALA permitted

Float  diameter

2400mm

Wall thickness

12mm

weight

2.92T

Nominal draft

2700mm

Nominal freeboard

1136mm

Focal plane height

5038mm

Visual area

6.18

Maximum flow rate

For every 100kg increase in freeboard reduction

6

25mm
