We are able to supply products for all water-depths, ranging from surface to a depth of 6000 metres.
Applications Nearshore, waterways, marinas, ports, ocean and offshore installations.

Cardinal Buoys for sale

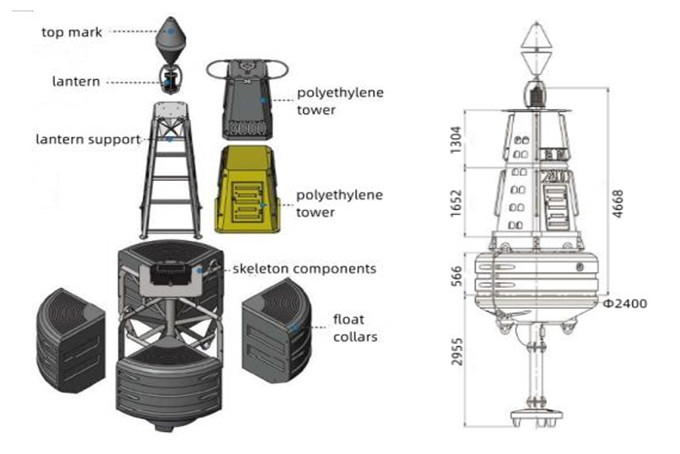

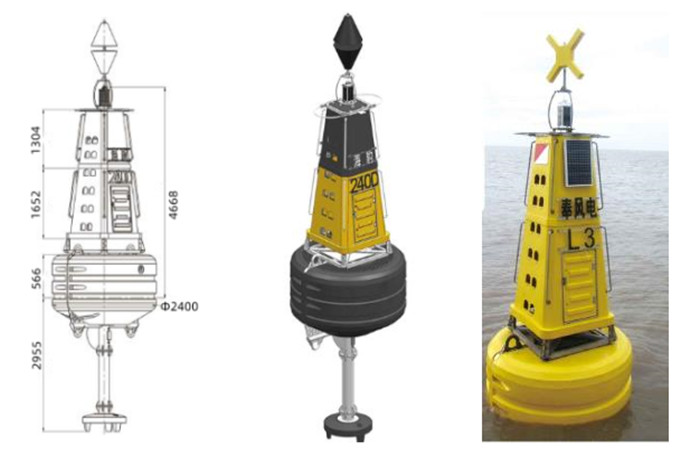

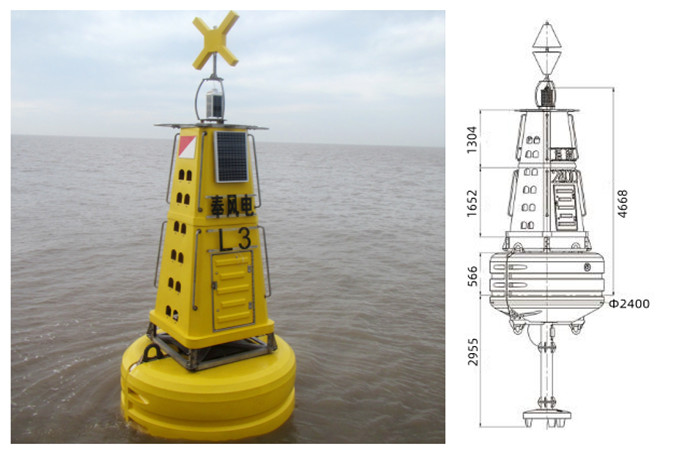

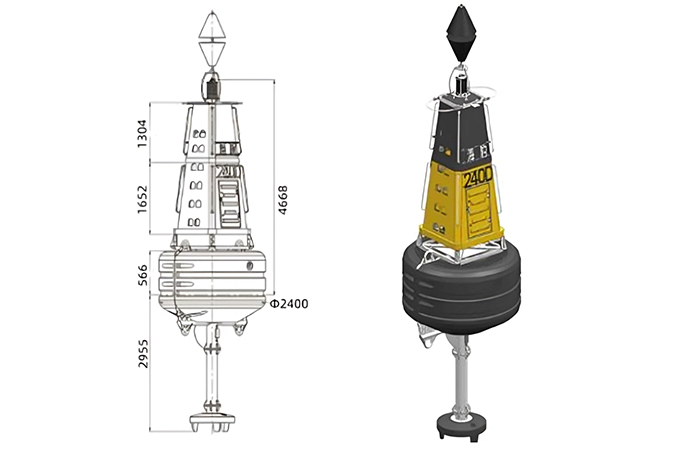

The Cardinal Buoys for sale  is a 2.4m diameter navigation buoy designed for inland waterway, offshore port or coastal applications. This innovative product is manufactured almost entirely from polyethylene, offering significant advantages over steel and other material.

*The main skeleton material 316L stainless steel, which has particularly good corrosion resistance in sea mist and seawater with a large amount of salt, can be used under harsh conditions.

*The rotomolding parts are made of LLDPE, and the color of the finished product conforms to the industry standard of the IALA Association, and after the 20000h UV Rating test according to the ASTM2565 standard, its chromaticity coordinate value is still within the IALA standard.

*The internal filling material of the buoy is a two-component polyurethane material, and the closed pore rate is greater than 90%, which ensures that the float will not sink due to water ingress after damage, resulting in the safety of navigation.


Main material

LLDPE

Filling

Closed-cell polyurethane foam



Anti-UV

UV20

Assembly mode

Modular combination design

Color

Any color IALA permitted

Float  diameter

2400mm

Wall thickness

12mm

weight

2100kg

Nominal draft

2955mm

Nominal freeboard

955mm

Focal plane height

4668mm

Visual area

6.4 m²

Maximum flow rate

7

Skeleton material

316L

Radar reflector area

6~10m²

Buoyance

20.6KN







Inquiry

Please Feel free to send your inquiry in the form below. We will reply you in 24 hours.

  • *
  • *
  • *
  • *
