Polyethylene Navigation Buoys for sale

The Polyethylene Navigation Buoys for sale is a 1.25m diameter navigation buoy designed for inland waterway, offshore port or coastal applications. This innovative product is manufactured almost entirely from polyethylene, offering significant advantages over steel and other material.

Polyethylene Navigation Buoys for sale

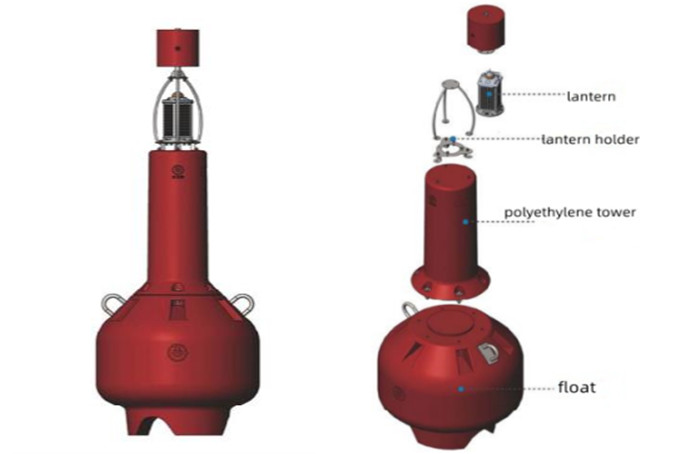

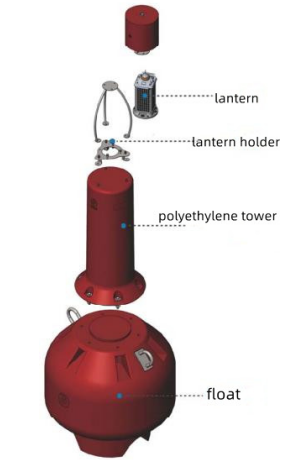

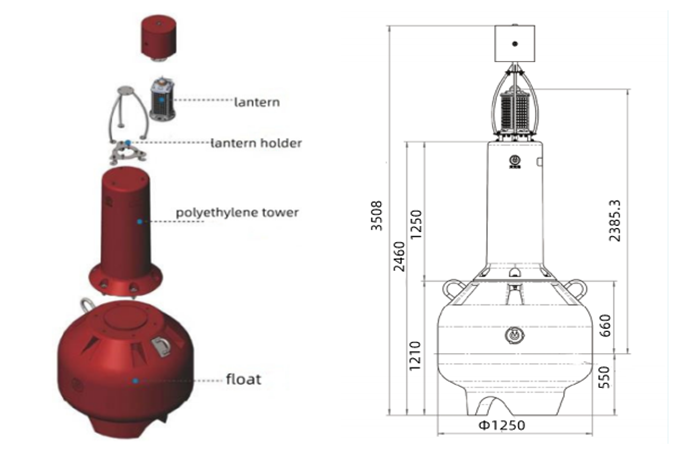

*It is mainly composed of rotational plastic float module, polyethylene tower, top mark assembly, etc.

*The rotomolding parts are made of LLDPE, and the color of the finished product conforms to the industry standard of the IALA Association, and after the 20000h UV Rating test according to the ASTM2565 standard, its chromaticity coordinate value is still within the IALA standard.

*The internal filling material of the buoy is a two-component polyurethane material, and the closed pore rate is greater than 90%, which ensures that the float will not sink due to water ingress after damage, resulting in the safety of navigation.

*Modular combination design, the strengthening of key parts by the structural design, advanced manufacturing process to ensure. When the module is damaged, it can be replaced on site, which is simple and fast.

*The buoy exterior is bolted with stainless steel, which is reliable in structure, easy to install and maintain, and easy to operate.

*The material of the rotomolded parts comes with its own color,so we do not need to paint and the buoy production process is green and pollution-free. The overall material of the buoy is efficient and environmentally friendly

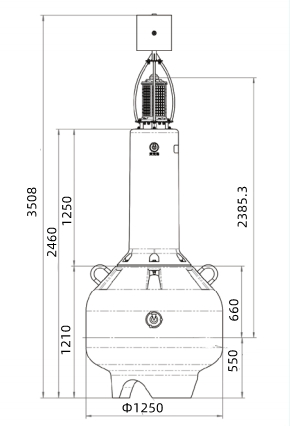

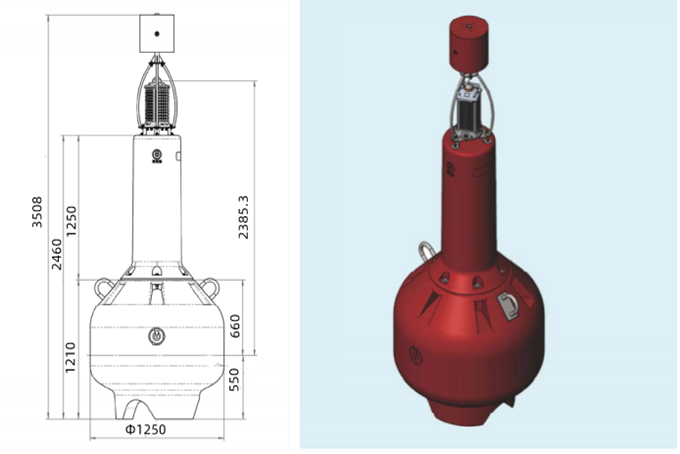

Specification



Buoyance

3.9KN

Main material

LLDPE

Filling

Closed-cell polyurethane foam



Anti-UV

UV20

Assembly mode

Modular combination design

Color

Any color IALA permitted

Float  diameter

1250mm

Wall thickness

8mm

weight

400kg

Nominal draft

550mm

Nominal freeboard

660mm

Focal plane height

2385mm

Visual area

1.39m²

Maximum flow rate

6
