China small Data Monitoring Buoy is  used of the rotational molding process in one piece, which with good toughness, when we thrown it into water, it won't rupture or damage badly.

The color of the Buoy surface is its material color. the material we use is virgin UV stabilised polyethylene with low density in order to meet the requirement of IALA industry. so it doesn't need any maintenance.

The material stuffed is Double-group distribution of foam material with closed pore rate greater than 90%, which can ensure the float will not sink due to water ingress after damage.

The whole producing process is environmental-friendly without any pollution, and all the material can be recycle.

The unique design of ring handle make it more convenient to handle and grasp.

Built-in 180° hemispherical omniscopic three-dimensional emitter with a range of 1 nautical mile which enables searching ships and aircrafts to observe the lights and can lock on to the target quickly.

Built-in Beidou + AMRD remote communication module, In anywhere, Beidou communication can allow managers to obtain real-time navigation dynamics; The built-in AMRD module can broadcast buoy position information to nearby ships and base stations at a distance of 5 nautical miles and a transmission interval of 10 minutes.

Here is the detail information of our data monitoring buoy:

Main material: LLDPE.

Floating stuff: water resistant polyurethane foam

UV resistance rating: UV20.

Color:  colors permitted by IALA.

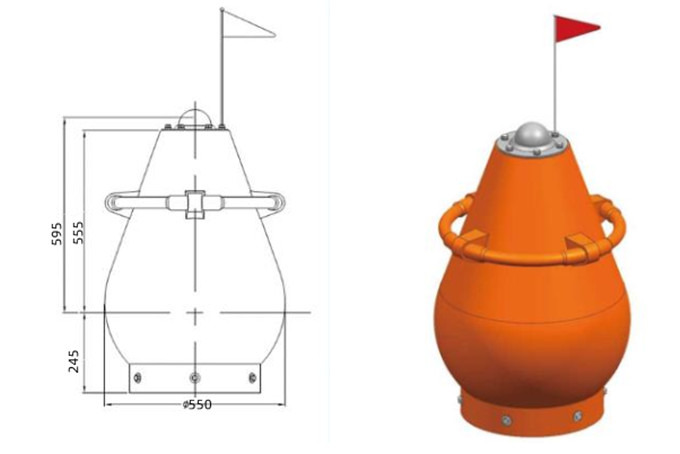

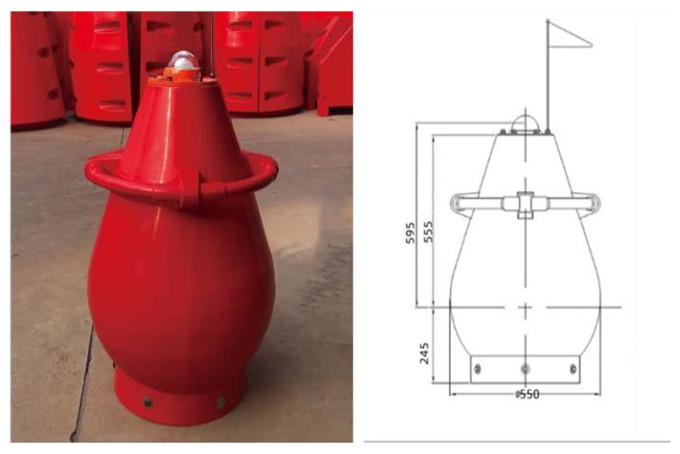

Diameter:550mm

Floating depth: 6mm

Weight: 30kg.

Nominal draft: 245mm

Nominal upperworks: 555mm

Nominal Focal plane: 595mm

Viewable area: 0.25m³

Reserve buoyance:  294N

Maximum velocity: 4
