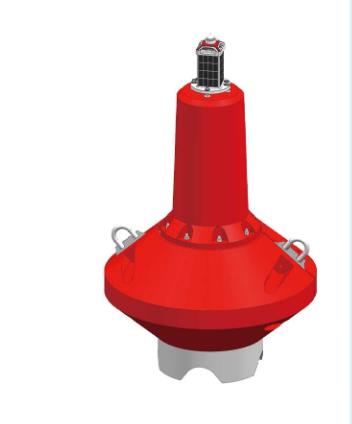

1250mm Polyethylene pillar Buoys mainly composed of 316L stainless steel skeleton and rotational plastic main module, it can be used as a navigational buoy or ornamental buoy in inland rivers and shallow water areas of ports, and can also be used as an emergency buoy.

It used modular combination design, the strengthening of key parts is guaranteed by the advanced manufacturing process of structural design. When the module is damaged, it can be replaced on site, which is simple and fast.

The material of the rotomolded parts comes with its own color without painting, and the buoy production process is green and pollution-free. The overall material of the buoy is efficient and environmentally friendly, and can be recycled.

Frame material: Stainless 316L

Main material: LLDPE.

Floating stuff: water resistant polyurethane foam

UV resistance rating: UV20.

Color:  colors permitted by IALA.

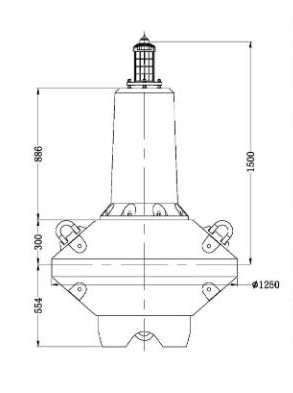

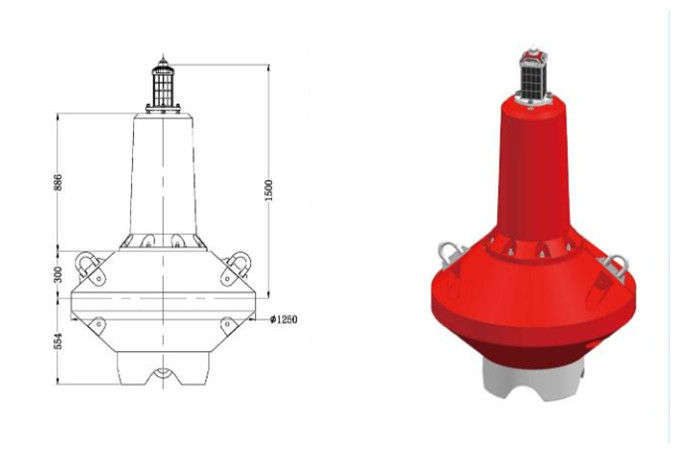

Diameter:1250mm

Floating depth: 10mm

Weight: 350kg.

Nominal draft: 554mm

Nominal upperworks: 300mm

Nominal Focal plane: 1500mm

Viewable area: 2.4m³

Radar reflection area: 6~10m³

Reserve buoyance:  3.4KN

Maximum velocity: 6

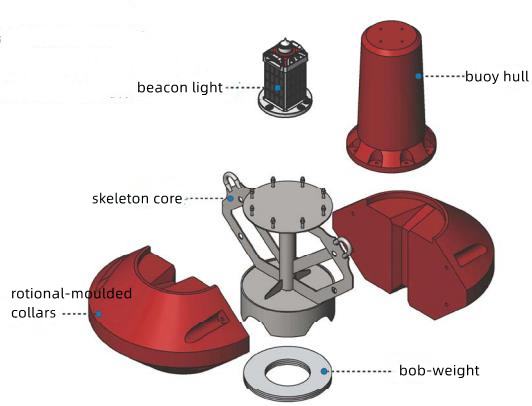

The internal structure:
