The 1500mm Diameter Polyethylene Lateral Buoy   is mainly composed of a 316L stainless steel frame and a rotomolded main module, which can be used as a navigation aid buoy in the port. The main part of the buoy is made of 316l stainless steel, so it has good corrosion resistance when it is work in salty sea fog and seawater circumstance.

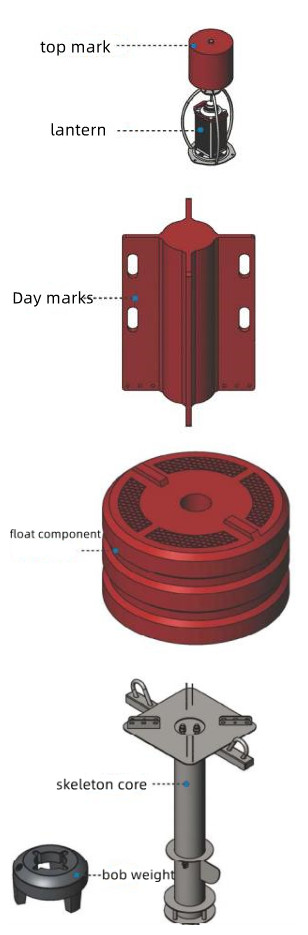

It used modular combination design, the strengthening of key parts is guaranteed by the advanced manufacturing process of structural design. When the module is damaged, it can be replaced on site, which is simple and fast.

We use low density polyethylene primary color material as the floating body material, while sandblasting and painting process are not necessary during the production. All the material we use can be recycling, so they are environmental friendly.

Here is the detail information:

Frame material: Stainless 316L

Main material: LLDPE.

Floating stuff: water resistant polyurethane foam

UV resistance rating: UV20.

Color:  colors permitted by IALA.

Diameter:1500mm

Floating depth: 10mm

Weight: 700kg.

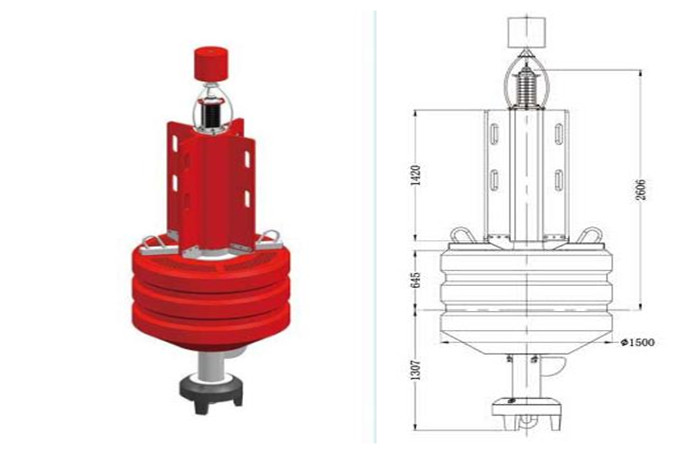

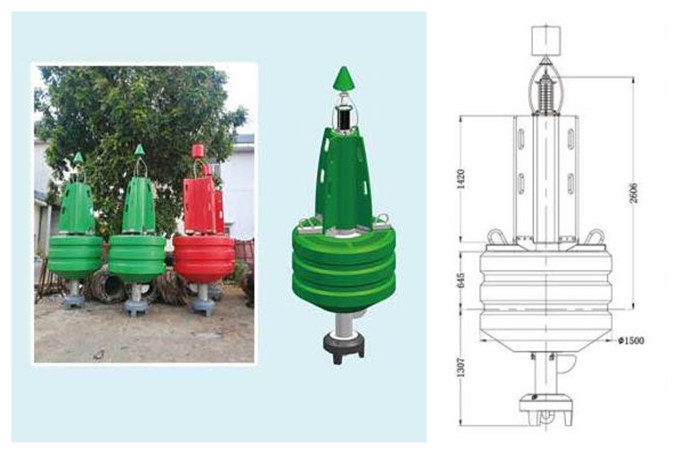

Nominal draft: 1307mm

Nominal upperworks: 645mm

Nominal Focal plane: 2606mm

Viewable area: 2.4m³

Radar reflection area: 6~10m³

Reserve buoyance:  6.9KN

Maximum velocity: 6
