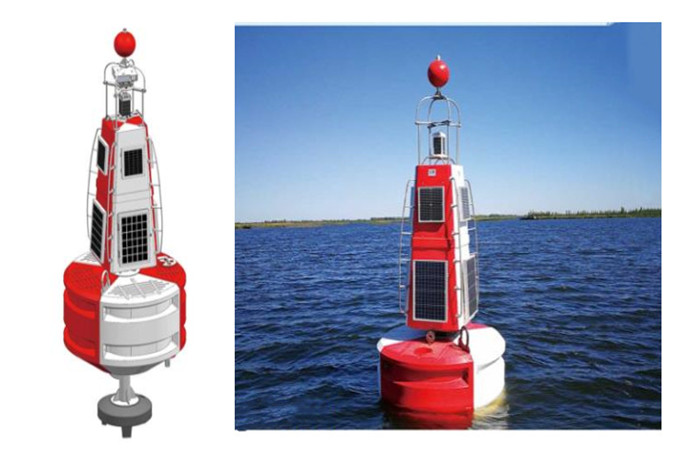

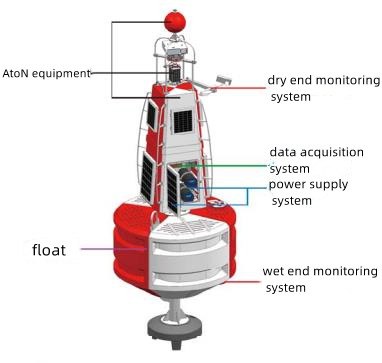

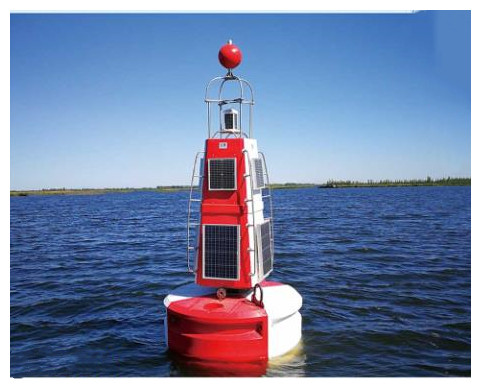

The 1800mm Diameters Data Acquisition Buoy  is mainly composed of 316L stainless steel skeleton, rotational plastic body module, large-capacity lithium battery pack, solar panels, etc..

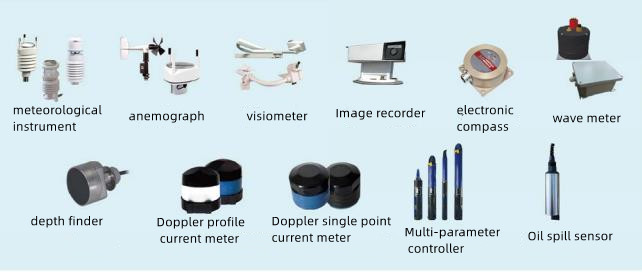

It can be operated for a long time, and which also can be equipped with hydrological monitoring equipment, meteorological monitoring equipment and video surveillance equipment in order to  achieve remote transmission. Suitable for  waterways, anchorages, marine ranches, water sources and other waters that require hydrology, meteorology and water quality monitoring.

It used modular combination design, the strengthening of key parts is guaranteed by the advanced manufacturing process of structural design. When the module is damaged, it can be replaced on site, which is simple and fast.

The inner filling material of the float is a two-component polyurethane material, and the sealing rate is greater than 90%, which ensures that the float will not sink due to water ingress after damage, resulting in the safety of navigation.

 Here is the main information about The 3000mm Diameters Marine Polyethylene Buoy:

monitoring system equipments for choosing.

Frame material: Stainless 316L

Main material: LLDPE.

Floating stuff: water resistant polyurethane foam

UV resistance rating: UV20.

Color:  colors permitted by IALA.

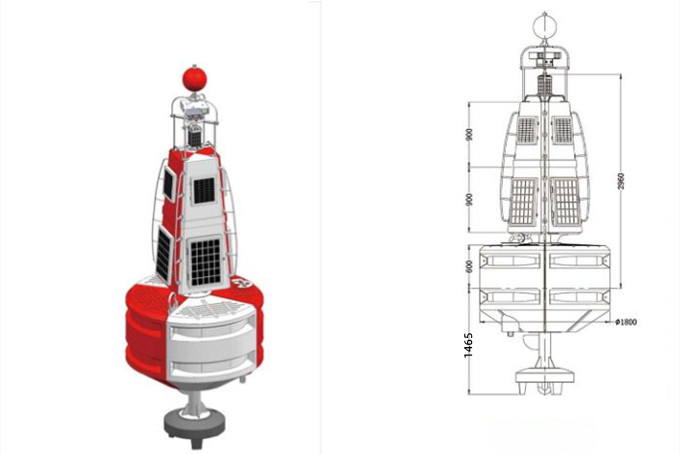

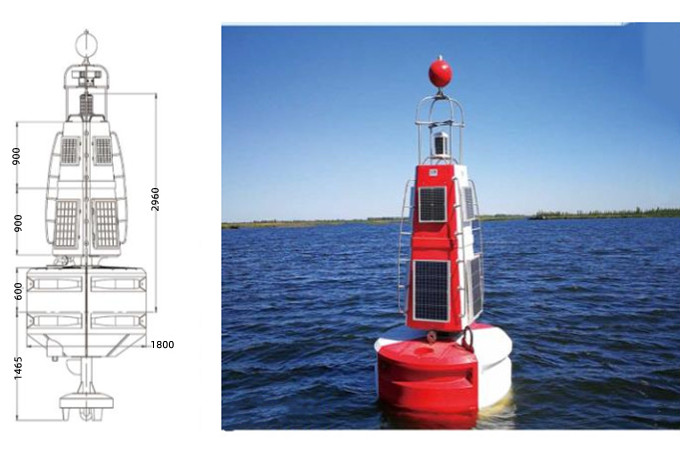

Diameter:1800mm

Floating depth: 10mm

Weight: 1200kg.

Nominal draft: 1465mm

Nominal upperworks: 600mm

Nominal Focal plane: 2960mm

Maximum solar panel power: 260W

Viewable area: 3.2m³

Radar reflection area: 6~10m³

Reserve buoyance:  11.8KN

Maximum velocity: 6
