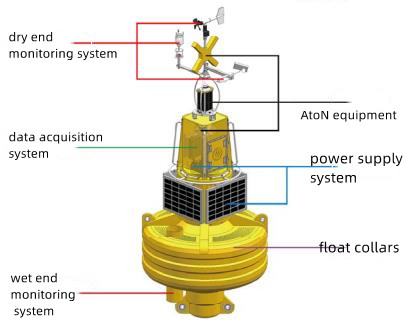

It is mainly composed of 316L stainless steel skeleton, rotational plastic body module, large-capacity lithium battery pack, solar panels, etc. It can be operated for a long time and can be equipped with a number of environmental testing equipment, which is suitable for marine ranches, water sources and other fields that need to be tested for hydrology.

The use of LLDPE material, applied to the floating body, buoy hull, top mark and other parts,with very excellent performance of the material. The product structure design is reasonable, durable and beautiful appearance, excellent visual effect, improve navigational performance, and provide a strong guarantee for ship navigation safety.

It used modular combination design, the strengthening of key parts is guaranteed by the advanced manufacturing process of structural design. When the module is damaged, it can be replaced on site, which is simple and fast.

The material of the rotomolded parts comes with its own color without painting, and the buoy production process is green and pollution-free. The overall material of the buoy is efficient and environmentally friendly, and can be recycled.

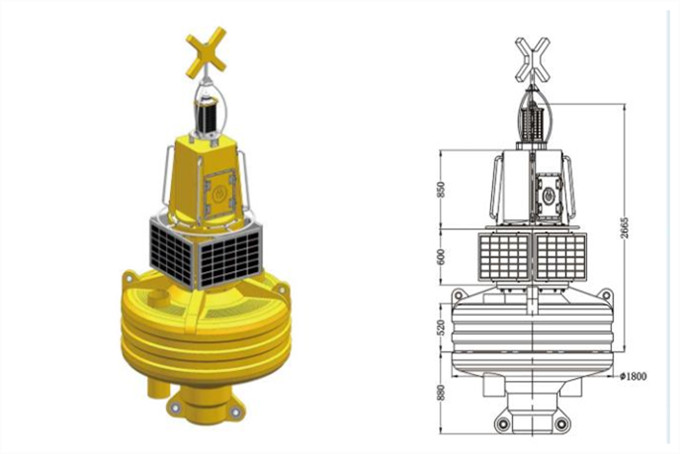

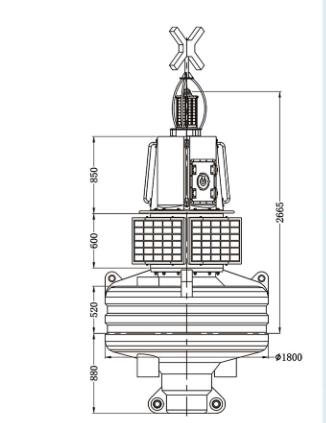

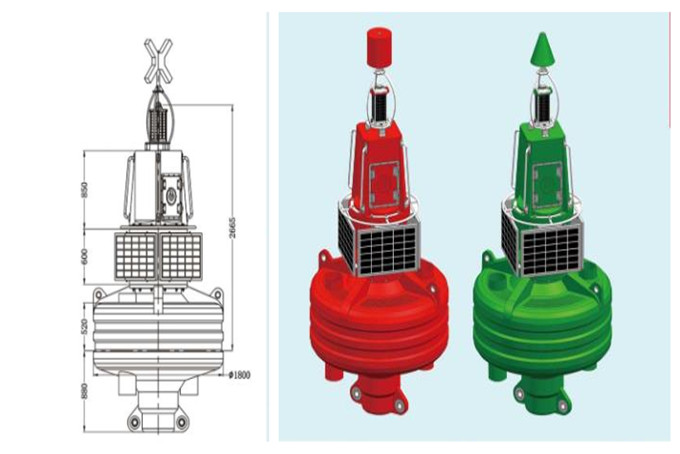

Information about our 1800mm Data Buoy as below:

Frame material: Stainless 316L

Main material: LLDPE.

Floating stuff: water resistant polyurethane foam

UV resistance rating: UV20.

Color:  colors permitted by IALA.

Diameter:1800mm

Floating depth: 12mm

Weight: 700kg.

Nominal draft: 880mm

Nominal upperworks: 520mm

Nominal Focal plane: 2665mm

Viewable area: 2.4m³

Radar reflection area: 6~10m3

^{Reserve buoyance:  6.9KN}

Maximum velocity: 6

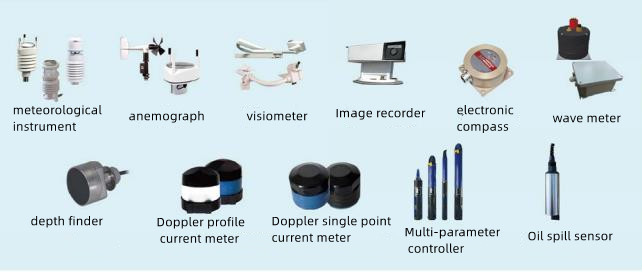

monitoring system equipment for choosing
