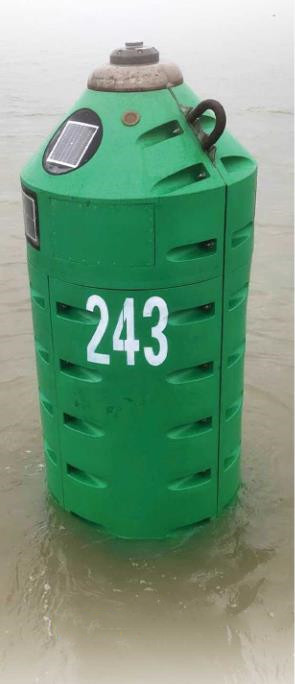

1500mm data Monitoring Buoy is a cheap, quick and easy way to ensure constant and immediate data collection when other systems are out of action, or where an environmental situation requires immediate monitoring (such as the potential release of hydrocarbons).
The buoy is designed for quick deployment in sheltered coastal and inshore areas. Its size and weight make it ideal for one person to handle in the field, and its single point mooring makes for easy deployment and recovery. These data buoys are well suited to mobile dredge plume monitoring as the buoys can be picked up and re-positioned wherever dredging activity is taking place.

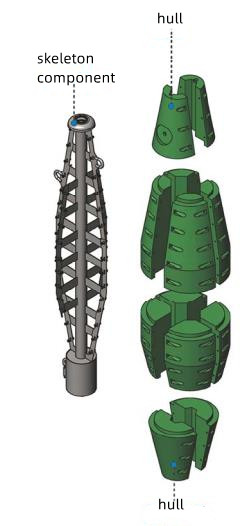

It used modular combination design, the strengthening of key parts is guaranteed by the advanced manufacturing process of structural design. When the module is damaged, it can be replaced on site, which is simple and fast.
The material of the rotomolded parts comes with its own color without painting, and the buoy production process is green and pollution-free. The overall material of the buoy is efficient and environmentally friendly, and can be recycled.
please check the information in detail:

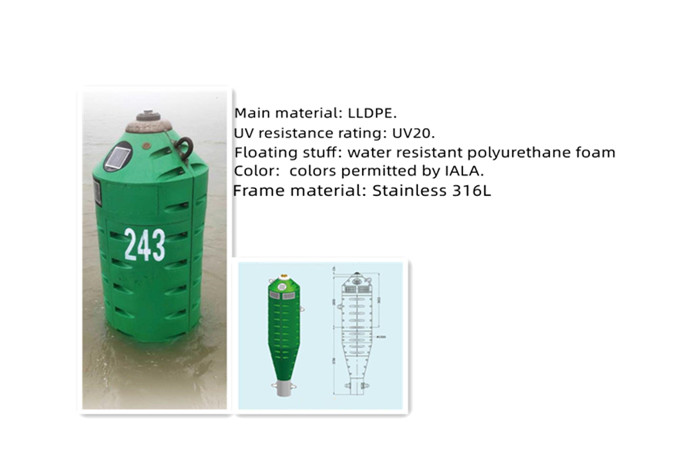

Material: Rotationally moulded UV-stabilised virgin polyethelene.
Color: Red, green, white, yellow combinations as per IALA requirements.
Filling: Closed cell low density polyurethane foam.
Hull diameter: 1500mm.
Weight: 3300kg.
Thickness of the hull: 10mm
Buoyancy: 32.3KN
Freeboard: 2985mm without mooring
Draft: 3790mm without mooring.
Focal height: 3053mm without mooring.
Solar panel power:110w
Visible area: 4m3
Radar Reflection Area: 6~10m3
